OCUP2F 02 Class Diagram

Module 4. Class Diagram⌘

Class Diagram⌘

This is structure diagram which presents structure of the designed system at the level of classes, interfaces and relationships - generalizations, associations, dependencies, ...

Element⌘

Metaclass Element

• An element is a constituent of a model.
• All elements are subclasses of Element
• Element can own other elements
• No notation for Element - it is abstract

Relationship ⌘

Relationship class

• Used to interconnect elements
• No notation for Relationship as it is abstract

Directed Relationship ⌘

DirectedRelationship class

• a specialization of a relationship
• source element wants something - a client
• target element offers something - a supplier

Comment⌘

• a textual annotation that can be attached to an element
• may contain information that is useful to a modeler
• can be attached to more than one element

Constraint⌘

• condition or restriction related to an element
• it must always be true
• can be in formal (OCL - Object Constraint Language), programming (e.g. Java), or human language
• syntax:

{ [name :] boolean expression }

Constraint Example⌘

Expression⌘

• Expressions specify values resulting from a computation.
• Examples: xor, else, plus(x,1), x+1
• Opaque Expression specifies the computation of a set of values in UML or any other language.
• Opaque expression may have a language defined e.g. {OCL} i > j and self.size > i

Classifier⌘

• an abstract base class
• describes a set of instances that have features in common

Simple Classifier⌘

• Simple Classifier specifies various kinds of Classifier that do not have complex internal structure.
• Simple Classifiers are:
  • Data type
  • Signal
  • Interface

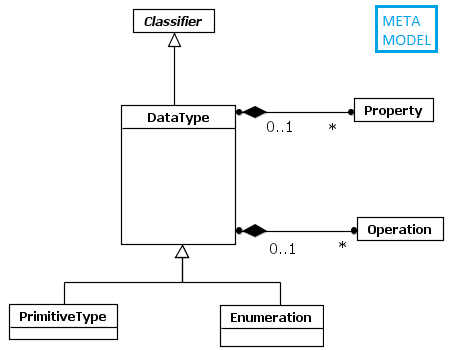

Data type⌘

• A data type is a type whose instances are identified only by their value - two instances with the same value are indistinguishable (equal).
• A DataType may contain attributes to support the modeling of structured data types.

PrimitiveType⌘

A primitive type defines a predefined data type, without any relevant substructure.

Instances of primitive type:

• Boolean (true, false)
• Integer (..., -1, 0, 1, ...)
• UnlimitedNatural (*, 0, 1, 2, ...) - the value of unlimited is shown using an asterisk ‘*’
• String is a sequence of characters within double quotes e.g. "NobleProg"
• Real real numbers using floating point representation shown in decimal notation or scientific notation e.g. 8E2

PrimitiveType examples⌘

Enumeration⌘

• An enumeration is a data type whose values are enumerated in the model as enumeration literals.
• Values corresponding to Enumeration Literals are immutable, so any attributes on an Enumeration shall be read-only.
• The Enumeration Literal name is unique within its Enumeration.
• Enumerations can participate in generalization relationships.

Interface⌘

• is a kind of classifier that represents a declaration of a set of coherent public features and obligations
• an interface specifies a contract; any instance of a classifier that realizes the interface must satisfy that contract
• it is just declaration - so it is not instantiable

Provided Interface⌘

• an interface realized by a classifier is its provided interface
• represent the obligations that instances of that classifier have to satisfy

Required Interface⌘

• specify services that a classifier needs in order to perform its function

Interface Example⌘

Structured Classifier⌘

• Describes the internal structure of a classifier and the collaborations that this structure makes possible.
• Structured Classifiers may contain an internal structure of connected elements each of which plays a role.

Structured Classifier Example⌘

Class⌘

• describes a set of objects that share the same specifications of features (attributes and operations)
• is a special classifier
• an object is an instance of a class

Generalization⌘

• relationship between a more general classifier and a more specific classifier
• each instance of the specific classifier is also an indirect instance of the general classifier
• the specific classifier inherits the features of the more general classifier

Generalization Example⌘

Association⌘

• specifies a relationship between instances
• describes a set of tuples whose values refer to typed instances
• declares that there can be links between instances of the associated types

Multiplicity⌘

• specifies how many objects of the opposite class an object can be associated with
• is a range of the minimum and maximum values
• syntax: number or min..max

Multiplicity	Notation
zero	0 or 0..0
exactly one	1
zero or one	0..1
zero or more	0..* or *
one or more	1..*

Multiplicity example⌘

Multiplicity - order and uniqueness⌘

• Multiplicity defines a specification of order and uniqueness of the collection elements.
• This option can specify whether the values should be unique and/or ordered.
  • ordered: the collection of values is sequentially ordered (default: not ordered)
  • unique: each value in the collection of values must be unique, no two values in the collection may be equal (default: is unique)

Aggregation⌘

• shows how something (whole) is composed of parts
• parts can exist separately - can be shared
• precise semantics of aggregation varies by application area and modeler :)

Composition⌘

• a strict form of aggregation
• the whole is the owner of its parts
• parts can not be shared
• the existence of its parts depends on the whole

Aggregation / Composition Example⌘

N-ary association⌘

• if an association has more than two end points (here: ternary association)
• Notation: a rhombus is used as a connection point

Dependency ⌘

• a relationship that signifies that a model element(s) requires other model element(s) for their specification or implementation
• the complete semantics of the depending elements is dependent on the definition of the supplier element(s)
• the modification of the supplier may impact the client model elements
• the semantics of the client is not complete without the supplier
• the type of dependency can be specified by using a keyword or stereotype

Abstract Classifier⌘

• Abstract Classifier has no direct instances.
• The name of an abstract Classifier is shown in italics or in addition, an abstract Classifier may be shown using {abstract} constraint after or below its name.

Feature⌘

• declares a behavioral or structural characteristic of instances of classifiers
• structural feature describes a structure of an instance of a classifier (e.g. property)
• behavioral feature specifies an aspect of the behavior of classifier's instances (e.g. operation)

Property⌘

Property Notation⌘

<property> ::= [<visibility>] [‘/’] <name> [‘:’ <prop-type>] [‘[‘ <multiplicity-range> ‘]’]
               [‘=’ <default>] [‘{‘ <prop-modifier > [‘,’ <prop-modifier >]* ’}’]
<visibility> ::= ‘+’ | ‘-‘ | ‘#’ | ‘~’
<prop-modifier> ::= ‘readOnly’ | ‘union’ | ‘subsets’ <property-name>
                     | ‘redefines’ <property-name> | ‘ordered’ | ‘unordered’
                     | ‘unique’ | ‘nonunique’ | ‘seq’
                     | ‘sequence’ | ‘id’ | <prop-constraint>

<inherited-property> ::= ’^’ <property>

Important Property Modifiers⌘

• readOnly means that the Property is read only.
• ordered means that the Property is ordered, i.e., isOrdered = true.
• unordered means that the Property is not ordered, i.e., isOrdered = false.
• unique means that there are no duplicates in a multi-valued Property, i.e., isUnique = true.
• nonunique means that there may be duplicates in a multi-valued Property, i.e., isUnique = false.
• id means that the Property is part of the identifier for the class.

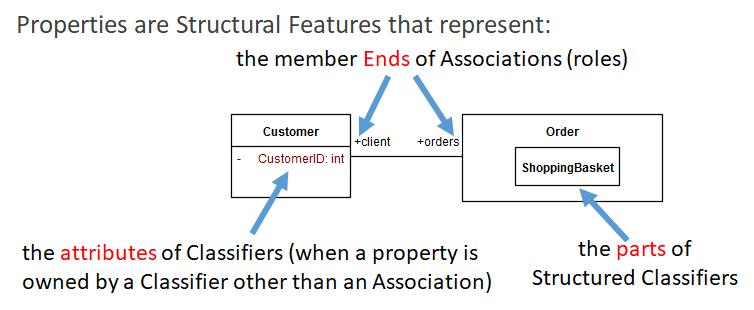

Property = End or Attribute⌘

Navigability⌘

• specifies whether one object can be accessed directly from another

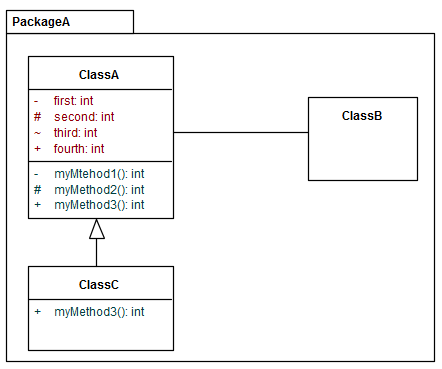

Visibility Example⌘

Operation⌘

• a behavioral feature of a classifier, which specifies name, type, parameters, and constraints
• can have preconditions and postconditions
• can have a type (the type of the return parameter)

[<visibility>] <name> ‘(‘ [<parameter-list>] ‘)’ [‘:’ [<return-type>]
[‘[‘ <multiplicity-range> ‘]’] [‘{‘ <oper-property> [‘,’ <oper-property>]* ‘}’]]
<oper-property> ::= ‘redefines’ <oper-name> | ‘query’ | ‘ordered’ | ‘unordered’
                     | ‘unique’ | ‘nonunique’ | ‘seq’ | ‘sequence’ | <oper-constraint>

Operation examples⌘

+createWindow (location: Coordinates, container: Container [0..1]): Window
+toString (): String
+toString(return : String)

INCORRECT:

Sub CalledProcedure(ByRef X As Long, ByVal Y As Long)
int addition (int a, int b)

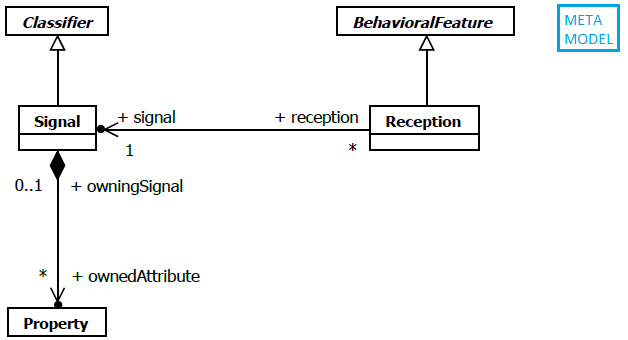

Signals and Receptions⌘

• Signals and Receptions are used to model asynchronous communication between objects.
• A Signal is a specification of a kind of communication between objects in which a reaction is asynchronously triggered in the receiver without a reply.
• The data carried by the communication are represented as attributes of the Signal.
• A Signal is defined independently of the Classifiers handling it.

Reception ⌘

• A Reception is a declaration stating that a Classifier is prepared to react to the receipt of a Signal.
• The name of the Reception matches the name of the Signal, and the parameter of the Reception matches the attribute of the Signal.
• By declaring a Reception associated to a given Signal, a Classifier specifies that its instances will be able to receive that Signal, or a subtype thereof, and will respond to it with the designated Behavior.

Static Feature⌘

• Characteristic relates to the Classifier’s instances may be considered individually (non static), or to the Classifier itself (static).
• Notation: static features are underlined.
