MagicDraw installation

Downloading

• Download from https://cloud.nobleprog.com/s/z5SAxLdoFy12bzk (use password provided by a training coordinator)
  • MagicDraw
  • SysML_Plugin
• Download license key flies for both

Installation

• Install and start Magic Draw (default installation)

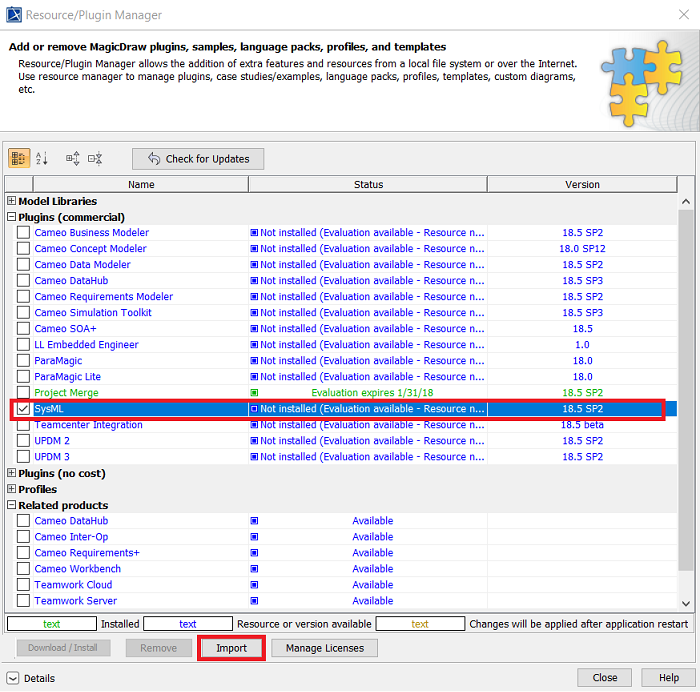

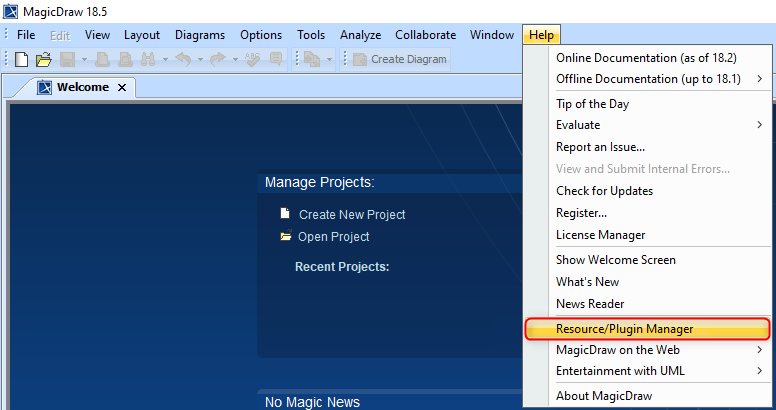

• Go to Help -> Resource/Plugin Manager,

• click Import and select SysML plugin file

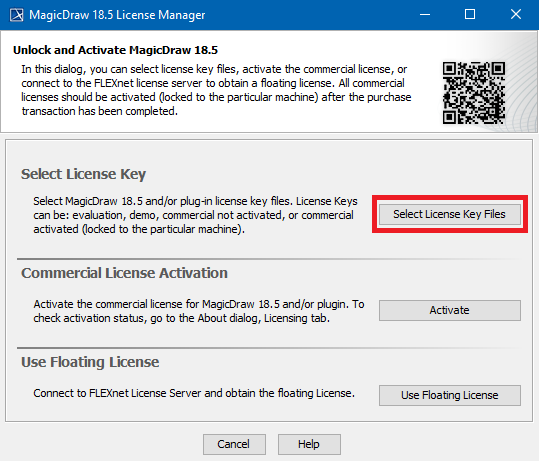

• Go to Help -> License Manager and add license keys (Select License Key Files) - add two license files

• Restart MagicDraw

SysML Project

• Click File -> New Project and check if the SysML Project is available from the Systems Engineering category
