Exercises

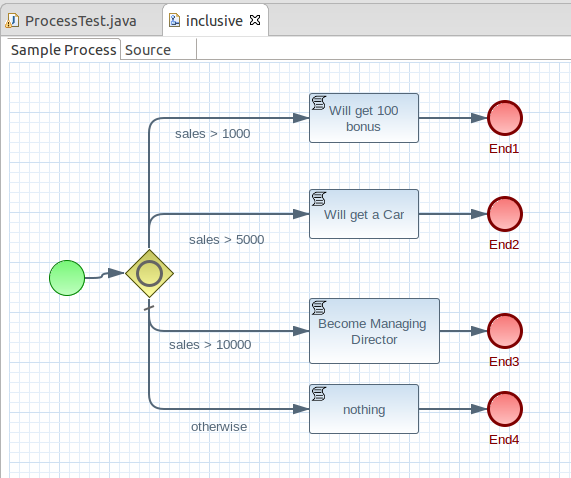

Inclusive Gateway

  • default path may not work (Eclipse bug)
public class ProcessTest extends JbpmJUnitBaseTestCase {

	@Test
	public void testProcess() throws Exception {
		/**
		 * A salesman will get a 100 bonus if his sales is over 1000
		 * if his sales is over 5000 he will get a car as well
		 * if his sales is over 10000 he will be made a Managing Director
		 *
		 * 1. Create appropriate gateway and process variables
		 * 2. Create a test which checks appropriate End events (NodeTriggered)
		 */
		createRuntimeManager("inclusive.bpmn");
		RuntimeEngine engine = getRuntimeEngine(null);
		KieSession ksession = engine.getKieSession();


        Map<String, Object> params = new HashMap<String, Object>();
        params.put("sales", 15000);
        ProcessInstance processInstance = ksession.startProcess("com.sample.bpmn", params);
        //Ends 1 to 3 will be reached
        assertNodeTriggered(processInstance.getId(),"End1");
        assertNodeTriggered(processInstance.getId(),"End2");
        assertNodeTriggered(processInstance.getId(),"End3");

        assertProcessInstanceCompleted(processInstance.getId(), ksession);


	}
}

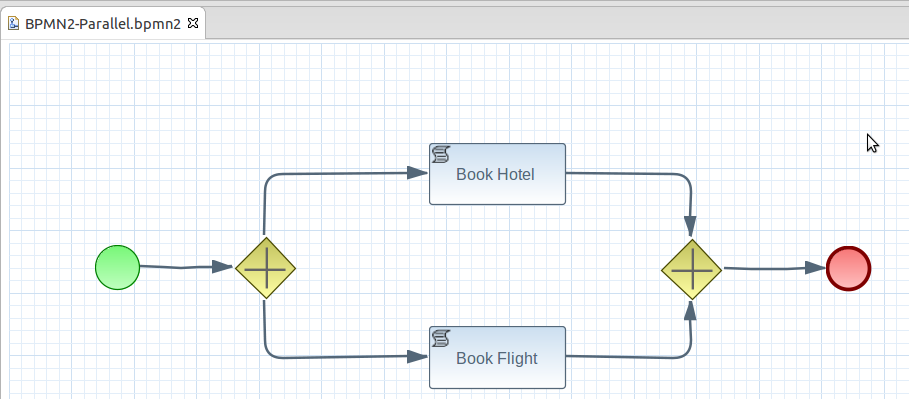

Parallel Gateway

  • no variables, no params (remove params attribute from startProcess method)
  • just 2 script tasks
  • change second parallel gateway type to Converging
public class ProcessTest extends JbpmJUnitBaseTestCase {

	@Test
	public void testProcess() throws Exception {
		createRuntimeManager("BPMN2-Parallel.bpmn");
		RuntimeEngine engine = getRuntimeEngine(null);
		KieSession ksession = engine.getKieSession();

		/**
		 * Trip booking requires booking hotel and the flight
		 * These things can be done concurrently (use parallel gateway)
		 *
		 * Advanced:
		 * If booking of a hotel or flight fails, create a mechanism for cancelling the reservation (use exclusive gateway)
		 */

        ProcessInstance processInstance = ksession.startProcess("com.sample.bpmn");
        assertNodeTriggered(processInstance.getId(),"Book Hotel");
        assertNodeTriggered(processInstance.getId(),"Book Flight");
        assertProcessInstanceCompleted(processInstance.getId(), ksession);

	}
}

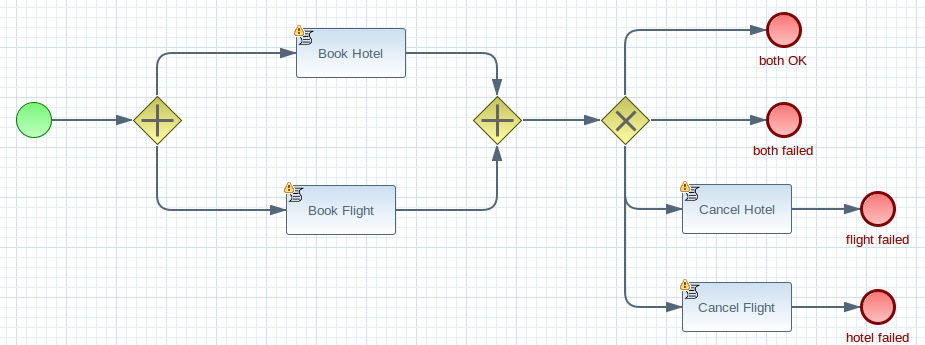

Parallel Gateway - Compensation

  • we want to check the result of booking
  • 2 process variables: hotelBooked:boolean, flightBooked:boolean
  • conditions:
    • return (hotelBooked && flightBooked);
    • return (! hotelBooked && ! flightBooked);
    • return (hotelBooked && ! flightBooked);
    • return (! hotelBooked && flightBooked);
public class ProcessTestAdvanced extends JbpmJUnitBaseTestCase {

	@Test
	public void testProcess() throws Exception {
		createRuntimeManager("ParallelAdvanced.bpmn");
		RuntimeEngine engine = getRuntimeEngine(null);
		KieSession ksession = engine.getKieSession();


		Map<String, Object> params = new HashMap<String, Object>();
        params.put("hotelBooked", false);
        params.put("flightBooked", false);
        ProcessInstance processInstance = ksession.startProcess("com.sample.bpmn.advanced",params);

        assertNodeTriggered(processInstance.getId(),"Book Hotel");
        assertNodeTriggered(processInstance.getId(),"Book Flight");
        assertProcessInstanceCompleted(processInstance.getId(), ksession);
        assertNodeTriggered(processInstance.getId(),"both failed");


	}

	@Test
	public void testProcessBothOK() throws Exception {
		createRuntimeManager("ParallelAdvanced.bpmn");
		RuntimeEngine engine = getRuntimeEngine(null);
		KieSession ksession = engine.getKieSession();


		Map<String, Object> params = new HashMap<String, Object>();
        params.put("hotelBooked", true);
        params.put("flightBooked", true);
        ProcessInstance processInstance = ksession.startProcess("com.sample.bpmn.advanced",params);

//        System.out.println(params.get("hotelBooked"));
//		System.out.println(params.get("hotelBooked"));

        assertNodeTriggered(processInstance.getId(),"Book Hotel");
        assertNodeTriggered(processInstance.getId(),"Book Flight");
        assertProcessInstanceCompleted(processInstance.getId(), ksession);
        assertNodeTriggered(processInstance.getId(),"both OK");


	}
}

Timer - delay

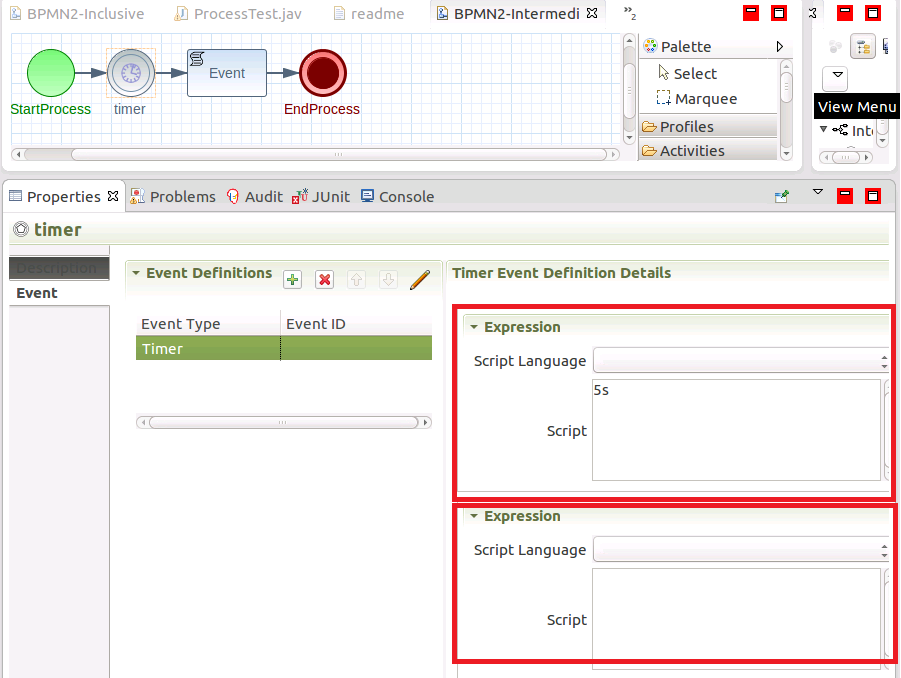

  • Timer event has two expressions sections:
    • first - specific time
    • second - specific cycle

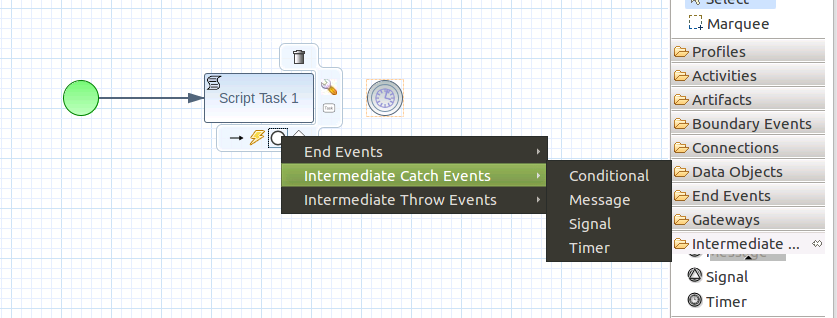

  • If you can't connect script task to intermediate timer event use context menu:

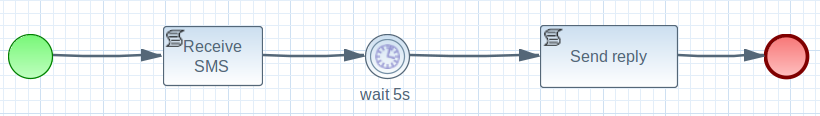

Scenario: A boyfriend sends an SMS message for his girlfriend. She waits 5s and sends reply SMS message.

  • timer - time duration 5s
public class ProcessTest extends JbpmJUnitBaseTestCase {

	@Test
	public void testProcess() throws InterruptedException {
		RuntimeManager manager = createRuntimeManager("sample.bpmn");
		RuntimeEngine engine = getRuntimeEngine(null);
		KieSession ksession = engine.getKieSession();

		ProcessInstance processInstance = ksession.startProcess("com.sample.bpmn.hello");

		assertNodeTriggered(processInstance.getId(), "Receive SMS");

		assertProcessInstanceActive(processInstance.getId(), ksession);
		// now wait for 2 seconds for timer to trigger
		Thread.sleep(2000);
		assertProcessInstanceActive(processInstance.getId(), ksession);

		Thread.sleep(4000);
		//Here process instance is no longer active
		//assertProcessInstanceActive(processInstance.getId(), ksession);

		// check whether the process instance has completed successfully
		assertProcessInstanceCompleted(processInstance.getId(), ksession);

		manager.disposeRuntimeEngine(engine);
		manager.close();
	}

}

05.2_timer_boundary_interrupting_time

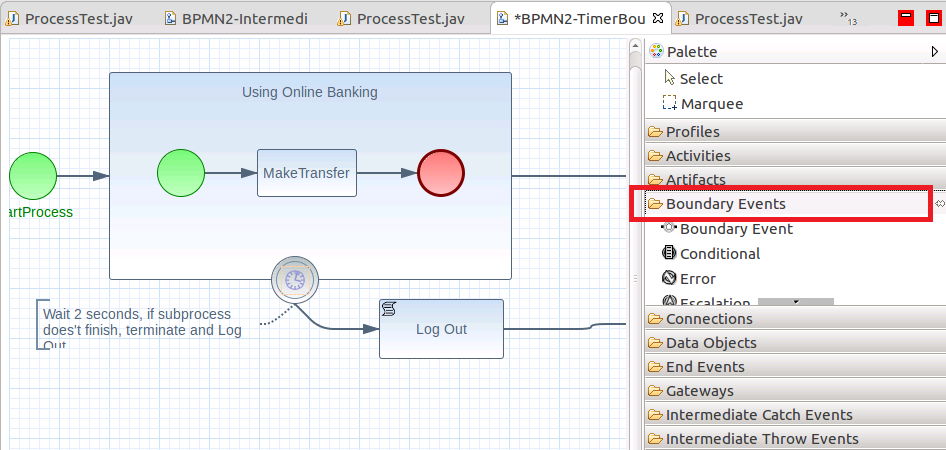

  • To add boundary event drag and drop event from boundary section - not from Intermediate catching section.

05.3_timer_boundary_non_interrupting_cycle

timer cycle 500ms###1s is 500ms initial delay + 1s delay -after 0.5s every 1s

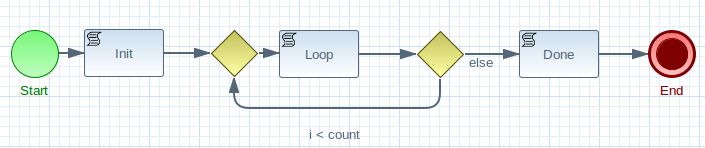

Loop

  • Init task
kcontext.setVariable("i", 0);
  • loop task
System.out.println("i = " + i);
kcontext.setVariable("i", i+1);
  • done task
System.out.println("Loop completed");
  • conditions
return i < count;

return true; (change to  default flow)

public class LoopingExample extends JbpmJUnitBaseTestCase {
	@Test
	public void testProcess() throws MalformedURLException {
		createRuntimeManager("Looping.bpmn");
		RuntimeEngine engine = getRuntimeEngine(null);
		KieSession ksession = engine.getKieSession();

		Map<String, Object> params = new HashMap<String, Object>();
		params.put("count", 5);
		ksession.startProcess("com.sample.looping", params);
	}
}

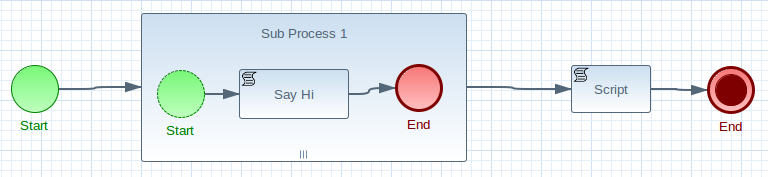

Multi instance

  • Say Hi task
System.out.println(kcontext.getVariable("mi_person_name") );

public class MultipleInstanceExample extends JbpmJUnitBaseTestCase {
	@Test
	public void testProcess(){
		createRuntimeManager("multipleinstance.bpmn");
		RuntimeEngine engine = getRuntimeEngine(null);
		KieSession ksession = engine.getKieSession();
		Map<String, Object> params = new HashMap<String, Object>();
		List<String> list = new ArrayList<String>();
		list.add("Bernard");
		list.add("Greg");
		list.add("Phil");
		params.put("list", list);
		ksession.startProcess("com.sample.multipleinstance", params);
	}
}

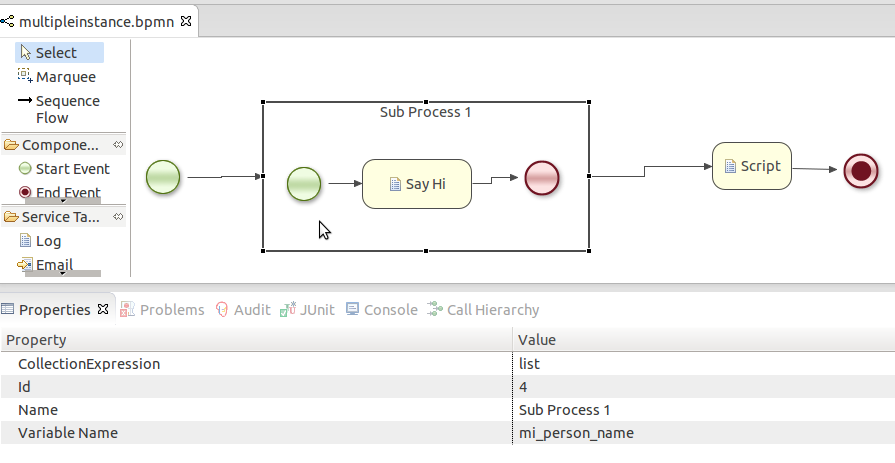

  • to set MI attributes change editor to BPMN2 Process Editor

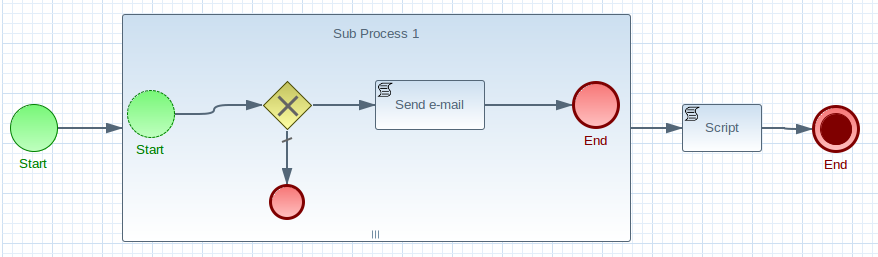

  • 07.1_exercise
    • copy BPMN file from 07_looping_multiinstance and add gateway:
    • Sent e-mail task:
System.out.println("E-mail sent to: " + kcontext.getVariable("mi_person_name") );
    • conditions
return kcontext.getVariable("mi_person_name") != "Greg";

Boundary events

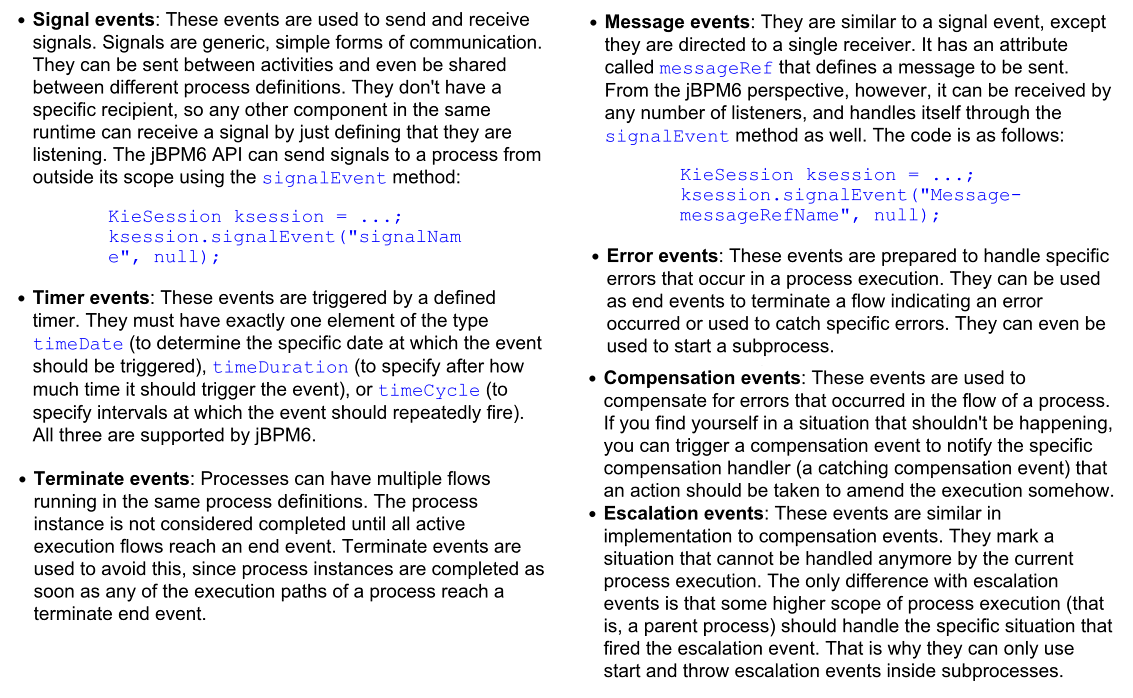

  • Message event in jBPM is implemented as signal event
//If you send a message, it will be Message-ID
ksession.signalEvent("Message-BookingCancelation",null,processInstance.getId());

https://www.packtpub.com/networking-and-servers/jbpm-6-developer-guide

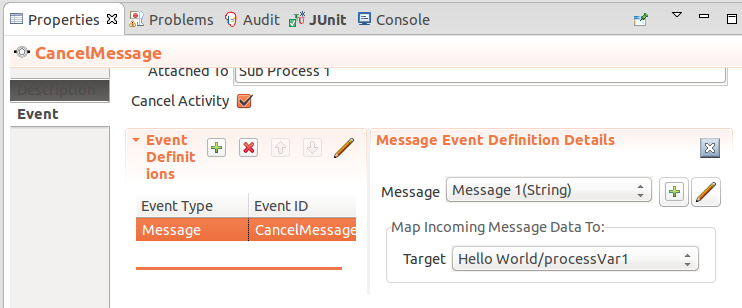

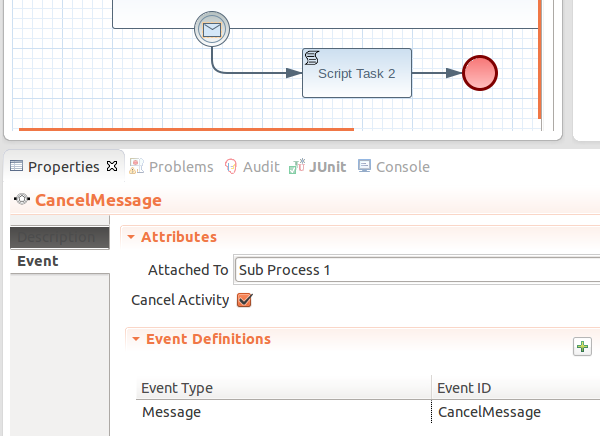

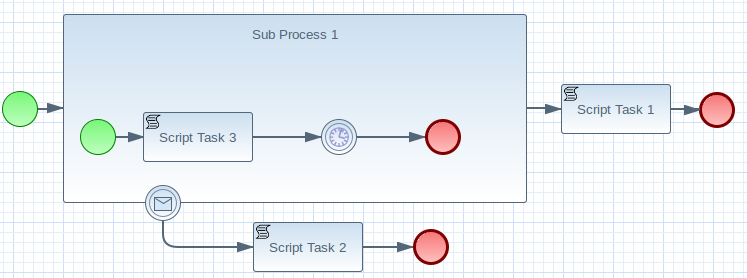

Message boundary exercise

  • Create new jBPM Project (not MAVEN, not KJAR)

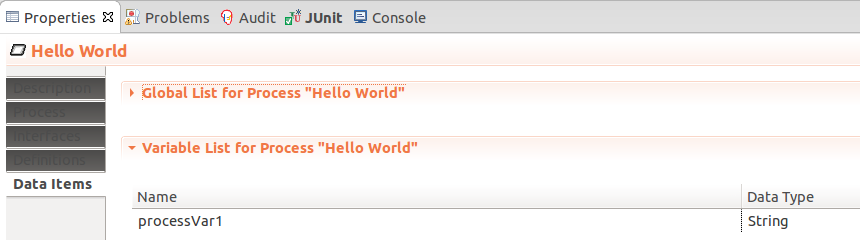

  • Add process variable (string)
  • Define Message Event
    • Assign target to process variable
  • Write JUnit test
    • add add throws Exception to test method (to use Thread.sleep):
@Test
	public void testProcess() throws Exception {
  • final code
package com.sample;

import org.jbpm.test.JbpmJUnitBaseTestCase;
import org.junit.Test;
import org.kie.api.runtime.KieSession;
import org.kie.api.runtime.manager.RuntimeEngine;
import org.kie.api.runtime.manager.RuntimeManager;
import org.kie.api.runtime.process.ProcessInstance;

/**
 * This is a sample file to test a process.
 */
public class ProcessTest extends JbpmJUnitBaseTestCase {

	@Test
	public void testProcess() throws Exception {
		RuntimeManager manager = createRuntimeManager("sample.bpmn");
		RuntimeEngine engine = getRuntimeEngine(null);
		KieSession ksession = engine.getKieSession();

		ProcessInstance processInstance = ksession.startProcess("com.sample.bpmn.hello");
		// check whether the process instance has completed successfully

		Thread.sleep(1000);
		ksession.signalEvent("Message-CancelMessage",null,processInstance.getId());
		assertProcessInstanceCompleted(processInstance.getId(), ksession);
		//assertNodeTriggered(processInstance.getId(), "Hello");

		manager.disposeRuntimeEngine(engine);
		manager.close();
	}

}
  • Change boundary event type to non interrupting and change test:
	@Test
	public void testProcess() throws Exception {
		RuntimeManager manager = createRuntimeManager("sample.bpmn");
		RuntimeEngine engine = getRuntimeEngine(null);
		KieSession ksession = engine.getKieSession();

		ProcessInstance processInstance = ksession.startProcess("com.sample.bpmn.hello");

		Thread.sleep(1000);
		ksession.signalEvent("Message-CancelMessage",null,processInstance.getId());
		Thread.sleep(1000);
		ksession.signalEvent("Message-CancelMessage",null,processInstance.getId());
		Thread.sleep(10000);
		manager.disposeRuntimeEngine(engine);
		manager.close();
  • Console window:
inside
message received
message received
after

Error boundary exercise

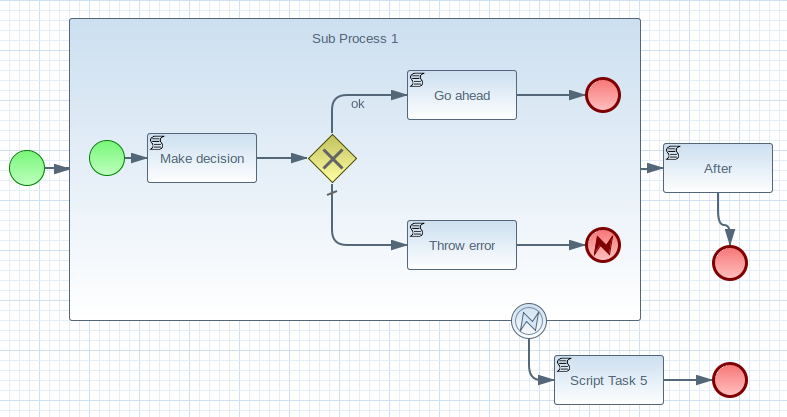

  • Create process with error events
  • process variables:
    • ok:Boolean (for a gateway)
    • errorVar:Integer
  • Add Error Event details

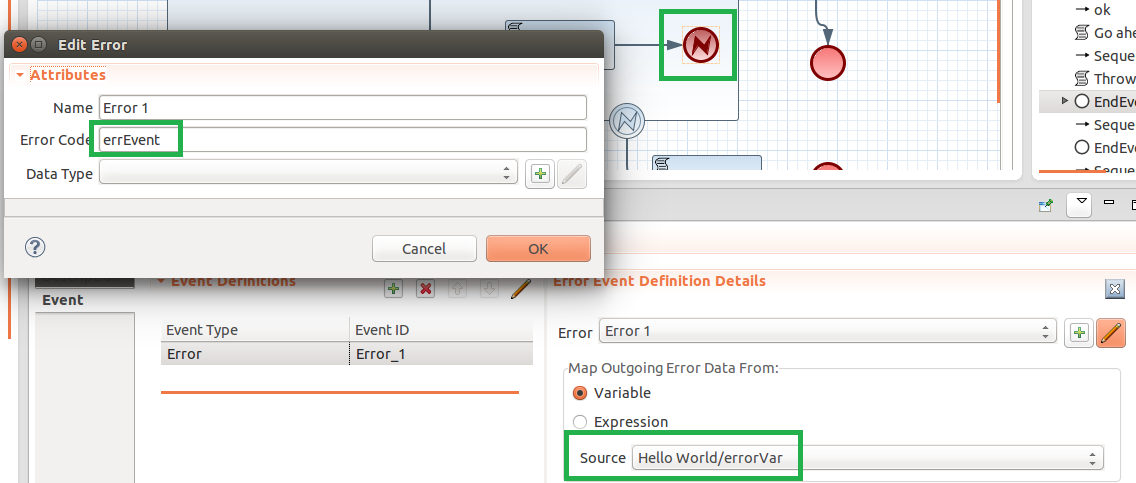

    • Error End Event

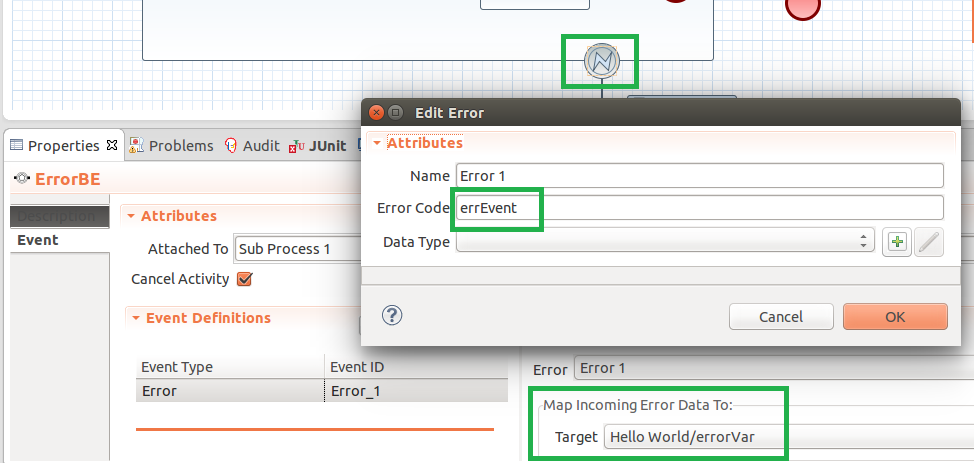

    • Error Boundary Intermediate Event
  • JUnit code
package com.sample;

import java.util.HashMap;
import java.util.Map;

import org.jbpm.test.JbpmJUnitBaseTestCase;
import org.junit.Test;
import org.kie.api.runtime.KieSession;
import org.kie.api.runtime.manager.RuntimeEngine;
import org.kie.api.runtime.manager.RuntimeManager;
import org.kie.api.runtime.process.ProcessInstance;

/**
 * This is a sample file to test a process.
 */
public class ProcessTest extends JbpmJUnitBaseTestCase {

    @Test
    public void testProcessNoErrors() {
        RuntimeManager manager = createRuntimeManager("ErrorBoundary.bpmn");
        RuntimeEngine engine = getRuntimeEngine(null);
        KieSession ksession = engine.getKieSession();

        Map<String, Object> params = new HashMap<String, Object>();
        params.put("ok", true);

        ProcessInstance processInstance = ksession.startProcess("com.sample.bpmn.hello", params);

        // check whether the process instance has completed successfully
        assertProcessInstanceCompleted(processInstance.getId(), ksession);

        manager.disposeRuntimeEngine(engine);
        manager.close();
    }

    @Test
    public void testProcessError() {
        RuntimeManager manager = createRuntimeManager("ErrorBoundary.bpmn");
        RuntimeEngine engine = getRuntimeEngine(null);
        KieSession ksession = engine.getKieSession();

        Map<String, Object> params = new HashMap<String, Object>();
        params.put("ok", false); //trigger error

        ProcessInstance processInstance = ksession.startProcess("com.sample.bpmn.hello", params);

        // check whether the process instance has completed successfully
        assertProcessInstanceCompleted(processInstance.getId(), ksession);

        manager.disposeRuntimeEngine(engine);
        manager.close();
    }

}

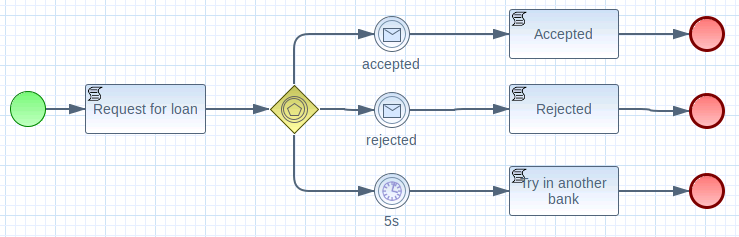

Event-Based Gateway

  • Create diagram
  • JUnit test
package com.nobleprog;

import org.jbpm.process.instance.impl.demo.SystemOutWorkItemHandler;
import org.jbpm.test.JbpmJUnitBaseTestCase;
import org.junit.Test;
import org.kie.api.runtime.KieSession;
import org.kie.api.runtime.manager.RuntimeEngine;
import org.kie.api.runtime.process.ProcessInstance;

public class ProcessTest extends JbpmJUnitBaseTestCase {

    @Test
    public void testProcessMessage1() throws Exception {

        createRuntimeManager("EventBasedGateway-Loan.bpmn2");
        RuntimeEngine engine = getRuntimeEngine(null);
        KieSession ksession = engine.getKieSession();

        ProcessInstance processInstance = ksession.startProcess("com.sample.test");
        ksession.signalEvent("Message-Message_1", null, processInstance.getId());

        assertProcessInstanceCompleted(processInstance.getId(), ksession);

    }

    @Test
    public void testProcessTimer() throws Exception {

        createRuntimeManager("EventBasedGateway-Loan.bpmn2");
        RuntimeEngine engine = getRuntimeEngine(null);
        KieSession ksession = engine.getKieSession();

        ProcessInstance processInstance = ksession.startProcess("com.sample.test");
        Thread.sleep(6000);
        assertProcessInstanceCompleted(processInstance.getId(), ksession);

    }

}

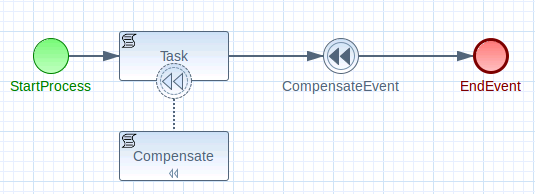

Compensation

  • Create diagram
  • to add compensation boundary event drag and drop empty boundary event and change event definition
  • then drag and drop script task and connect boundary event with the task using association
  • JUnit code
package com.sample;

import java.util.HashMap;
import java.util.Map;

import org.jbpm.test.JbpmJUnitBaseTestCase;
import org.junit.Test;
import org.kie.api.runtime.KieSession;
import org.kie.api.runtime.manager.RuntimeEngine;
import org.kie.api.runtime.manager.RuntimeManager;
import org.kie.api.runtime.process.ProcessInstance;

/**
 * This is a sample file to test a process.
 */
public class ProcessTest extends JbpmJUnitBaseTestCase {

    @Test
    public void testProcess() {

        RuntimeManager manager = createRuntimeManager("BPMN2-Compensation-IntermediateThrowEvent.bpmn2");
        RuntimeEngine engine = getRuntimeEngine(null);
        KieSession ksession = engine.getKieSession();

        Map<String, Object> params = new HashMap<String, Object>();
         params.put("x", 10);

        System.out.println("Initialized value: " + params.get("x"));
        ProcessInstance processInstance = ksession.startProcess("CompensateIntermediateThrowEvent", params);



        // check whether the process instance has completed successfully
        assertProcessInstanceCompleted(processInstance.getId(), ksession);

        manager.disposeRuntimeEngine(engine);
        manager.close();
    }
}

<?xml version="1.0" encoding="UTF-8"?>
<bpmn2:definitions xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:bpmn2="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:dc="http://www.omg.org/spec/DD/20100524/DC" xmlns:di="http://www.omg.org/spec/DD/20100524/DI" xmlns:tns="http://www.jboss.org/drools" xmlns="http://www.jboss.org/drools" xsi:schemaLocation="http://www.omg.org/spec/BPMN/20100524/MODEL BPMN20.xsd http://www.jboss.org/drools drools.xsd http://www.bpsim.org/schemas/1.0 bpsim.xsd" id="Definition" expressionLanguage="http://www.mvel.org/2.0" targetNamespace="http://www.example.org/MinimalExample" typeLanguage="http://www.java.com/javaTypes">
  <bpmn2:itemDefinition id="_xItem" structureRef="String"/>
  <bpmn2:itemDefinition id="_Integer" structureRef="Integer"/>
  <bpmn2:process id="CompensateIntermediateThrowEvent" tns:version="1" tns:packageName="defaultPackage" tns:adHoc="false" name="Compensate Intermediate Throw Event Process" isExecutable="true" processType="Private">
    <bpmn2:property id="x" itemSubjectRef="_Integer"/>
    <bpmn2:startEvent id="_1" name="StartProcess">
      <bpmn2:outgoing>_1-_2</bpmn2:outgoing>
    </bpmn2:startEvent>
    <bpmn2:sequenceFlow id="_1-_2" tns:priority="1" name="" sourceRef="_1" targetRef="_2"/>
    <bpmn2:scriptTask id="_2" name="Task">
      <bpmn2:incoming>_1-_2</bpmn2:incoming>
      <bpmn2:outgoing>SequenceFlow_1</bpmn2:outgoing>
      <bpmn2:script>System.out.println(&quot;Inside (before compensation): &quot; + x=99);</bpmn2:script>
    </bpmn2:scriptTask>
    <bpmn2:boundaryEvent id="_10" name="CompensateEvent" attachedToRef="_2" cancelActivity="false">
      <bpmn2:compensateEventDefinition id="CompensateEventDefinition_2" activityRef="_2"/>
    </bpmn2:boundaryEvent>
    <bpmn2:scriptTask id="_11" name="Compensate" isForCompensation="true">
      <bpmn2:script>System.out.println(&quot;After compensation: &quot; + x);</bpmn2:script>
    </bpmn2:scriptTask>
    <bpmn2:sequenceFlow id="SequenceFlow_1" tns:priority="1" name="" sourceRef="_2" targetRef="_4"/>
    <bpmn2:intermediateThrowEvent id="_4" name="CompensateEvent">
      <bpmn2:incoming>SequenceFlow_1</bpmn2:incoming>
      <bpmn2:outgoing>_4-_5</bpmn2:outgoing>
      <bpmn2:compensateEventDefinition id="CompensateEventDefinition_1" activityRef="_2"/>
    </bpmn2:intermediateThrowEvent>
    <bpmn2:sequenceFlow id="_4-_5" tns:priority="1" name="" sourceRef="_4" targetRef="_5"/>
    <bpmn2:endEvent id="_5" name="EndEvent">
      <bpmn2:incoming>_4-_5</bpmn2:incoming>
    </bpmn2:endEvent>
    <bpmn2:association id="_10-_11" sourceRef="_10" targetRef="_11"/>
  </bpmn2:process>
  <bpmndi:BPMNDiagram id="BPMNDiagram_1">
    <bpmndi:BPMNPlane id="BPMNPlane_Process_1" bpmnElement="CompensateIntermediateThrowEvent">
      <bpmndi:BPMNShape id="BPMNShape_StartEvent_1" bpmnElement="_1">
        <dc:Bounds height="36.0" width="36.0" x="50.0" y="57.0"/>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="BPMNShape_IntermediateThrowEvent_1" bpmnElement="_4">
        <dc:Bounds height="36.0" width="36.0" x="340.0" y="57.0"/>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="BPMNShape_EndEvent_1" bpmnElement="_5">
        <dc:Bounds height="36.0" width="36.0" x="490.0" y="57.0"/>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="BPMNShape_ScriptTask_1" bpmnElement="_2">
        <dc:Bounds height="50.0" width="110.0" x="136.0" y="50.0"/>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="BPMNShape_BoundaryEvent_1" bpmnElement="_10">
        <dc:Bounds height="36.0" width="36.0" x="173.0" y="82.0"/>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape id="BPMNShape_ScriptTask_2" bpmnElement="_11">
        <dc:Bounds height="50.0" width="110.0" x="136.0" y="150.0"/>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNEdge id="BPMNEdge_SequenceFlow_1" bpmnElement="_1-_2" sourceElement="BPMNShape_StartEvent_1" targetElement="BPMNShape_ScriptTask_1">
        <di:waypoint xsi:type="dc:Point" x="86.0" y="75.0"/>
        <di:waypoint xsi:type="dc:Point" x="108.0" y="75.0"/>
        <di:waypoint xsi:type="dc:Point" x="108.0" y="75.0"/>
        <di:waypoint xsi:type="dc:Point" x="136.0" y="75.0"/>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="BPMNEdge_SequenceFlow_4" bpmnElement="_4-_5" sourceElement="BPMNShape_IntermediateThrowEvent_1" targetElement="BPMNShape_EndEvent_1">
        <di:waypoint xsi:type="dc:Point" x="376.0" y="75.0"/>
        <di:waypoint xsi:type="dc:Point" x="427.0" y="75.0"/>
        <di:waypoint xsi:type="dc:Point" x="427.0" y="75.0"/>
        <di:waypoint xsi:type="dc:Point" x="490.0" y="75.0"/>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="BPMNEdge_Association_1" bpmnElement="_10-_11" sourceElement="BPMNShape_BoundaryEvent_1" targetElement="BPMNShape_ScriptTask_2">
        <di:waypoint xsi:type="dc:Point" x="191.0" y="118.0"/>
        <di:waypoint xsi:type="dc:Point" x="191.0" y="132.0"/>
        <di:waypoint xsi:type="dc:Point" x="191.0" y="132.0"/>
        <di:waypoint xsi:type="dc:Point" x="191.0" y="150.0"/>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge id="BPMNEdge_SequenceFlow_5" bpmnElement="SequenceFlow_1" sourceElement="BPMNShape_ScriptTask_1" targetElement="BPMNShape_IntermediateThrowEvent_1">
        <di:waypoint xsi:type="dc:Point" x="246.0" y="75.0"/>
        <di:waypoint xsi:type="dc:Point" x="288.0" y="75.0"/>
        <di:waypoint xsi:type="dc:Point" x="288.0" y="75.0"/>
        <di:waypoint xsi:type="dc:Point" x="340.0" y="75.0"/>
      </bpmndi:BPMNEdge>
    </bpmndi:BPMNPlane>
  </bpmndi:BPMNDiagram>
</bpmn2:definitions>

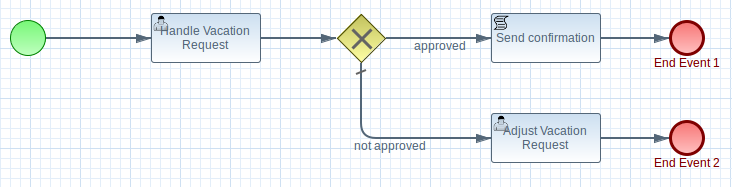

UserTask - not working

  • Create new jBPM project
  • Create BPMN diagram
    • set gateway type to diverging
    • add approved:boolean local process variable
    • add conditions after the gateway
    • add script task script

Work Item

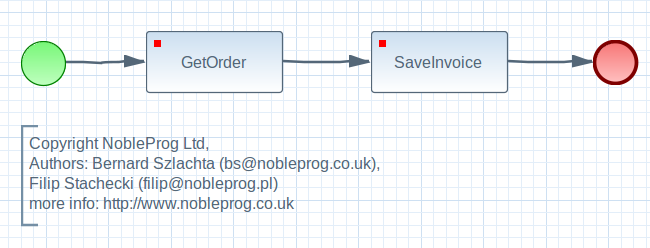

Scenario: We need to get Order data to issue an invoice using external system.

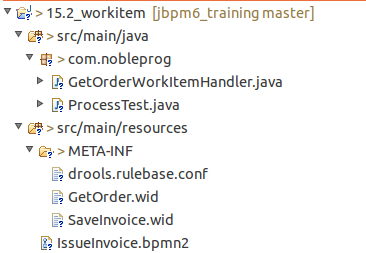

Project Explorer

Work Item Definition (GetOrder.wid)

import org.drools.core.process.core.datatype.impl.type.StringDataType;
[
  [
    "name" : "GetOrder",
    "parameters" : [
      "orderId" : new StringDataType(),
      "orderTotal" : new StringDataType(),
    ],
    "displayName" : "GetOrder",
    "icon" : "icons/getoutlinetitle.gif"
  ]
]

drools.rulebase.conf

drools.workDefinitions = GetOrder.wid

Work Item Handler

package com.nobleprog;

import java.util.HashMap;
import java.util.Map;

import org.kie.api.runtime.process.WorkItem;
import org.kie.api.runtime.process.WorkItemHandler;
import org.kie.api.runtime.process.WorkItemManager;

public class GetOrderWorkItemHandler implements WorkItemHandler {
	  public void executeWorkItem(WorkItem workItem, WorkItemManager manager) {

	    // extract parameters
	    String orderId = (String) workItem.getParameter("orderId");
	    Map<String, Object> result = new HashMap<String,Object>();
	    result.put("orderTotal","12000");
	    System.out.println("Retriving order information (mock service) for orderId:" + orderId);

	    manager.completeWorkItem(workItem.getId(), result);
	  }

	  public void abortWorkItem(WorkItem workItem, WorkItemManager manager) {
	    // Do nothing, notifications cannot be aborted
	  }
}

ProcessTest.java

package com.nobleprog;
import java.util.HashMap;
import java.util.Map;

import com.nobleprog.GetOrderWorkItemHandler;

import org.jbpm.test.JbpmJUnitBaseTestCase;
import org.junit.Test;
import org.kie.api.runtime.KieSession;
import org.kie.api.runtime.manager.RuntimeEngine;
import org.kie.api.runtime.process.ProcessInstance;

public class ProcessTest extends JbpmJUnitBaseTestCase {

	@Test
	public void testProcess() throws Exception {
	String[] processes = new String[]{"IssueInvoice.bpmn2"};
	createRuntimeManager(processes);
	RuntimeEngine engine = getRuntimeEngine(null);
	KieSession ksession = engine.getKieSession();

	ksession.getWorkItemManager().registerWorkItemHandler("GetOrder", new GetOrderWorkItemHandler());
        Map<String, Object> params = new HashMap<String, Object>();
        params.put("orderId", "15");
        ProcessInstance processInstance = ksession.startProcess("com.sample.test", params);

	assertProcessInstanceCompleted(processInstance.getId(), ksession);
	}
}

Using Eclipse with Workbench

  • Eclipse -> KIE Workbench
  • KIE Workbench -> Eclipse
    • [KIE] Authoring/Administration
    • [Eclipse] Right click/Team/Pull
Retrieved from "https://training-course-material.com/index.php?title=JBPM_6_Filip&oldid=66336"
