JBPM 6 - 1.1 - Creating Simple Process

JBPM 6 - 1.1 - Creating Simple Process 创建简单流程

Scenario 场景

• We are going to recruit people

我们要招人

• At first the company is small, so it involves only interviewing people over the phone

起初公司规模小，所以只需要电话面试即可

• Later more things to the process will be added

以后会有更多的东西加入流程里

• We will use this example over the most of the materials

我们将在大部分教材中使用这个例子

Creating Organization Unit, repository, project and package 创建组织单元、库、项目和包

1. Creating Organizational Unit
   1. Log in as krisv
   2. Authoring/Administration
   3. Organization Units/Manage Organization Units/Add
   4. Name: npou / Owner: NobleProg Ltd
2. Creating Repository
   1. Authoring/Administration
   2. Repositories/New Repository
   3. Repository Name: nprep/Organizational Unit: npou
3. Creating Project
   1. Authoring/ Project Authoring
   2. Switch to npou/nprep
   3. New Item/Project
   4. Resource Name: npproj1
   5. Group ID: nppack

Creating Simple Process

1. Creating simple diagram
   1. Authoring/Project Authoring
   2. New Item/Business Process/Name: emp_recruitment1
   3. Create User Task, set
      • Name HT Phone Interview
      • Task Name to HT Phone Interview
      • Actor: krisv
   4. Validate the process
   5. Save, check in with "Added Phone Interview Task" message

Deploying and Executing

1. Deploy the process

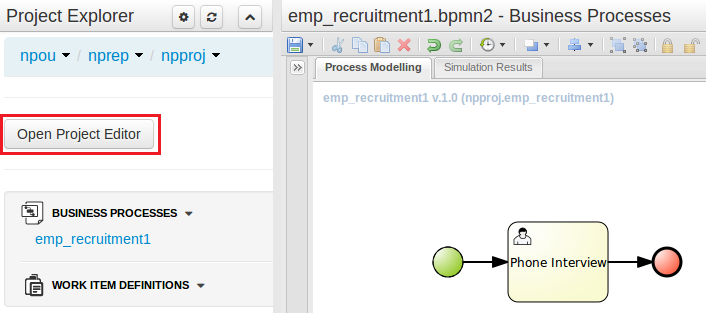

   1. Open Project Editor

   2. Project Editor/Build & Deploy

   3. Process Management/Process Definitions
   4. Actions/Start
2. Check whether Instance is running
   1. Process Management/Process Instances
3. Performing a task
   1. Tasks/Task List
   2. Actions/Start
   3. Details / Work / Complete
4. Check the Instance
   1. Process Management / Process Instances / Completed
   2. View Instance log of the task

Optional Browsing Database for completed instances and tasks

1. Download SQL Workbench
2. Login to /home/installuser/jbpm-db (username sa, no password)
3. select * from taskevent;
