CCAH

Administrator Training for Apache Hadoop

Copyright © 2014 NobleProg™. All Rights Reserved.
www.nobleprog.pl

Hadoop introduction⌘

What does Hadoop mean?⌘

https://developers.google.com/hadoop/images/hadoop-elephant.png

"The name my kid gave a stuffed yellow elephant. Short, relatively easy to spell and pronounce, meaningless and not used elsewhere: those are my naming criteria. Kids are good at generating such. Googol is a kid's term."

Doug Cutting, Hadoop Project Creator

Outline⌘

• First Day:
  • Session I:
    • Introduction to the course
    • Introduction to Cloud Computing and Big Data solutions
  • Session II:
    • HDFS
  • Session III:
    • MapReduce
  • Session IV:
    • YARN

Outline #2⌘

• Second Day:
  • Session I:
    • Installation and configuration of Hadoop in pseudo-distributed mode
  • Session II:
    • Running MapReduce jobs on the Hadoop cluster
  • Session III:
    • Hadoop ecosystem: Pig, Hive, Sqoop, HBase, Flume, Oozie
  • Session IV:
    • Supporting tools: Hue, Cloudera Manager
    • Big Data future: Impala, Cassandra

Outline #3⌘

• Third Day:
  • Session I:
    • Hadoop cluster planning
  • Session II:
    • Hadoop cluster planning
  • Session III:
    • Hadoop security
  • Session IV:
    • Hadoop monitoring and logging

Outline #4⌘

• Fourth Day:
  • Session I:
    • Hadoop cluster installation and configuration
  • Session II:
    • Hadoop cluster installation and configuration
  • Session III:
    • Hadoop cluster installation and configuration
  • Session IV:
    • Hadoop cluster installation and configuration

Outline #5⌘

• Fifth Day:
  • Session I:
    • Hadoop cluster installation and configuration
  • Session II:
    • Hadoop cluster installation and configuration
  • Session III:
    • Hadoop cluster installation and configuration
  • Session IV:
    • Case Studies
    • Certification and Surveys

First Day - Session I⌘

Introduction

http://news.nost.org.cn/wp-content/uploads/2013/06/BigDataBigBuildings.jpg

"I think there is a world market for maybe five computers"⌘

http://upload.wikimedia.org/wikipedia/commons/7/7e/Thomas_J_Watson_Sr.jpg

Thomas Watson, IBM, 1943.

How big are the data we are talking about?⌘

http://www.atkearney.com.tr/documents/10192/698536/FG-Big-Data-and-the-Creative-Destruction-of-Todays-Business-Models-1.png

Data storage evolution⌘

• 1956 - HDD (Hard Disk Drive), now up to 6 TB
• 1983 - SDD (Solid State Drive), now up to 16 TB
• 1984 - NFS (Network File System), first NAS (Network Attached Storage) implementation
• 1987 - RAID (Redundant Array of Independent Disks), now up to ~100 disks
• 1993 - Disk Arrays, now up to ~200 disks
• 1994 - Fibre-channel, first SAN (Storage Area Network) implementation
• 2003 - GFS (Google File System), first Big Data implementation

Virtualization vs clustering⌘

Foundations of cloud computing⌘

There are as many cloud definitions as people talking about that

The base features of a cloud:

• it is completely transparent to users
• it delivers a value to users in a form of services
• its storage and computing resources are infinite from users' perspective
• it is geographically distributed
• it is highly available
• it runs on the commodity hardware
• it leverages computer network technologies
• it is easily scalable
• it operates on the basis of distributed computing paradigm
• it is multi-tenant
• it implements "pay-as-you-go" billing

Is Hadoop a cloud computing solution?

What is Hadoop?⌘

• Apache project for storing and processing large data sets
• Open-source implementation of Google Big Data solutions
• Components:
  • HDFS (Hadoop Distributed File System)
  • YARN (Yet Another Resource Negotiator)
  • Data processing models (MapReduce, Impala, Tez, etc.)
  • Underpinning tools (Pig, Hive, Sqoop, HBase, etc.)
• Written in Java

Big Data and Hadoop evolution⌘

• 2003 - GFS (Google File System) publication, available here
• 2004 - Google MapReduce publication, available here
• 2005 - Hadoop project is founded
• 2006 - Google BigTable publication, available here
• 2008 - First Hadoop implementation
• 2010 - Google Dremel publication, available here
• 2010 - First HBase implementation
• 2012 - Apache Hadoop YARN project is founded
• 2013 - Cloudera releases Impala
• 2013 - Apache releases Tez
• 2014 - Cloudera signs cooperation agreements with Teradata and Red Hat

Hadoop distributions⌘

• Apache Hadoop, http://hadoop.apache.org/
• CDH (Cloudera Distribution including apache Hadoop), http://www.cloudera.com/
• HDP (Hortonworks Data Platform), http://hortonworks.com/
• M3, M5 and M7, http://www.mapr.com/
• Amazon Elastic MapReduce3, http://aws.amazon.com/
• BigInsights Enterprise Edition, http://www.ibm.com/
• Intel Distribution for Apache Hadoop, http://hadoop.intel.com/
• And more ...

Who uses Hadoop?⌘

http://cdn2.hadoopwizard.com/wp-content/uploads/2013/01/hadoopwizard_companies_by_node_size600.png

Where is it all going?⌘

• At this point we have all the tools to start changing the future:
  • capability of storing and processing any amount of data
  • tools for storing unstructured and structured data
  • tools for batch and interactive processing
  • tools allowing an integration with other services
  • cloud computing paradigm has matured
• BigData use and future:
  • search engines
  • scientific analysis
  • advertisements
  • trends prediction
  • business intelligence
  • artificial intelligence

CCA-500 exam⌘

• Detailed Objectives: http://www.cloudera.com/content/cloudera/en/training/certification/ccah/prep.html
• Certification Authority: PearsonVUE (http://www.pearsonvue.com/)
• Exam Cost: 295$ (prizes in local currency updated on a daily basis)
• Exam Duration: 90m
• Number of questions: 60
• Exam Passing Score: 70%
• Question Type: closed
• Alternative exams: CCA-410, CCA-505

References⌘

• Books:
  • E. Sammer. "Hadoop Operations". O'Reilly, 1st edition
  • T. White. "Hadoop: The Definitive Guide". O'Reilly, 3rd edition
• Publications:
  • http://research.google.com/pubs/papers.html
  • http://ieeexplore.ieee.org/Xplore/home.jsp
• Websites:
  • Apache Hadoop project website: http://hadoop.apache.org/
  • Cloudera website: http://www.cloudera.com/content/cloudera/en/home.html
  • Hortonworks website: http://hortonworks.com/
  • MapR website: http://www.mapr.com/
• Internet

Introduction to the lab⌘

Lab components:

• Laptop with Windows
• Virtual Machine with Linux on VirtualBox:
  • Hadoop instance in pseudo-distributed mode
  • Hadoop ecosystem
  • terminal for connecting to GCE
• GCE (Google Compute Engine) cloud-based IaaS platform
  • Hadoop cluster

VirtualBox⌘

• VirtualBox 64-bit version (click here to download)
• VM name: CCAH
• Credentials: terminal / terminal (use root account)
• Snapshots (top right corner)
• Press right "Control" key to release

GCE⌘

• Accounts
• Project name: Hadoop
• Project ID: check after logging in
• GUI:
  • https://console.developers.google.com/project
• CLI:
  • gcloud auth login
  • gcloud config set project [Project ID]
  • sudo /opt/google-cloud-sdk/bin/gcloud components update

First Day - Session II⌘

HDFS

http://munnamark.files.wordpress.com/2012/03/petabyte1.jpg

Goals and motivation⌘

• Very large files:
  • file size up to tens of terabytes
  • filesystem size up to tens of petabytes
• Streaming data access:
  • write-once, read-many-times approach
  • optimized for batch processing
• Fault tolerance:
  • data replication
  • metadata high availability
• Scalability:
  • commodity hardware
  • ease of extension
• Resilience:
  • components failures are common
• Support for MapReduce computing paradigm

Design⌘

• FUSE (Filesystem in USErspace)
• Non POSIX-compliant filesystem (http://standards.ieee.org/findstds/standard/1003.1-2008.html)
• Block abstraction:
  • block size: 64 MB by default (editable by client per file)
  • block replication: 3 replicas by default (editable by client per file)
• Benefits:
  • support for files larger than disks
  • segregation of data and metadata
  • fault tolerance
• Lab Exercise 1.2.1

Daemons⌘

• Datanode:
  • responsible for storing data
  • many per cluster
• Namenode:
  • responsible for storing metadata
  • responsible for maintaining a database of data location
  • 1 active per cluster
• Secondary namenode:
  • responsible for processing metadata
  • 1 active per cluster

Data⌘

• Blocks:
  • Stored in a form of files on a top of an uderlying filesystem
  • Stored on datanodes' data disks and accessed by datanodes themselves
  • Reported periodically to the namenode in a form of block reports
• Concepts:
  • Lazy space
  • Fault tolerance thanks to replication
  • Parallel processing thanks to replication

Metadata⌘

• Stored in a form of files on the namenode:
  • fsimage_[transaction ID] - complete snapshot of the filesystem metadata up to specified transaction
  • edits_inprogress_[transaction ID] - incremental modifications made to the metadata since specified transaction
• Contain information on properties of the HDFS filesystem
• Copied and served from the namenode's RAM
• Processed by the secondary namenode
• Don't confuse metadata with a database of data blocks' location
• Lab Exercise 1.2.2

Metadata management⌘

• When does it occur?
  • every hour
  • edits file reaches 64 MB
• How does it look like?

T. White. "Hadoop: The Definitive Guide"

Read path⌘

1. A client opens a file by calling open() on FileSystem object
2. The client calls a namenode to return sorted list of datanodes for the first batch of blocks in the file
3. The client caches the list
4. The client connects to the first datanode on the list
5. The client streams the data from the datanode
6. The client closes the connection to the datanode
7. The client repeats steps 3-5 for the next blocks or steps 2-5 for the next batch of blocks, or closes the file

Read path #2⌘

T. White. "Hadoop: The Definitive Guide"

Data read preferences⌘

• Determines the closest datanode hosting the same block of data
• Distance based on the available network bandwidth between two nodes:
  • 0 - the same node
  • 2 - the same rack
  • 4 - the same data center
  • 6 - different data centers

Write path⌘

1. A client creates a file by calling create() on DistributedFileSystem object
2. The client calls a namenode to create the file with no blocks in a filesystem namespace
3. The client calls the namenode to return a list of datanodes to store replicas of a batch data blocks
4. The client caches the list
5. The client connects to the first datanode on the list and chain streams the data block over there
6. The datanode connects to the second datanode on the list and immediately chain streams the data block over there, and so on ...
7. The datanodes acknowledge the receiving of the data block back back to the client
8. The client repeats steps 4-5 for the next blocks or steps 3-5 for the next batch of blocks
9. The client closes the data queue
10. The client notifies the namenode that the file is complete

Write path #2⌘

T. White. "Hadoop: The Definitive Guide"

Data write preferences⌘

• 1st copy - on the client (if running datanode daemon) or randomly selected non-overloaded datanode
• 2nd copy - on a datanode in a different rack in the same data center
• 3rd copy - on randomly selected non-overloaded datanode in the same rack
• 4th and further copies - on randomly selected non-overloaded datanaode

Namenode High Availability⌘

• Namenode - SPOF (Single Point Of Failure)
• Manual namenode recovery process may take up to 30 minutes
• Namenode HA feature available since 0.23 release
• High Availability type: active / passive
• Failover type: manual / automatic
• Based on QJM (Quorum Journal Manager)
• STONITH (Shot The Other Node In The Head)
• Fencing methods
• Secondary namenode functionality moved to the standby namenode

Namenode High Availability #2⌘

http://www.binospace.com/wp-content/uploads/2013/07/slide-10-1024_%E5%89%AF%E6%9C%AC.jpg

Journal Node⌘

• Relatively lightweight
• Usually collocated on the machines running namenode or jobtracker daemons
• edits file modification must be written to a majority of the journal nodes
• Usually deployed in 3, 5, 7, 9, etc.
• Lab Exercise 1.2.3

Namenode Federation⌘

• Namenode memory limitations
• Namenode federation feature available since 0.23 release
• Horizontal scalability
• Filesystem partitioning
• ViewFS
• Federation of HA pairs
• Lab Exercise 1.2.4

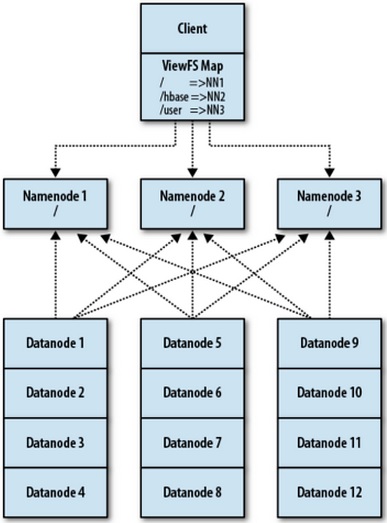

Namenode Federation #2⌘

E. Sammer. "Hadoop Operations"

Fault Tolerance⌘

• Case 1:
  • Failure type: datanode failure
  • Detection method: heartbeat messages sent every 3 seconds
  • Handling method: datanode is assumed dead after 10 minutes
• Case 2:
  • Failure type: communication failure
  • Detection method: acknowledgements sent in response to read / write requests
  • Handling method: failed datanode is skipped during read / write operations
• Case 3:
  • Failure type: data corruption
  • Detection method: checksum stored with every data block
  • Handling method: data blocks with a wrong checksum are not reported by datanodes

Under replicated blocks⌘

• Block is assumed under replicated when:
  • a datanode on which one of its replica resides is assumed dead by the namenode
  • not enough block replicas are reported by datanodes
• Under replicated block handling strategy:
  • the namenode automatically replicates under replicated blocks
  • the administrator can manually re-balance blocks at any time
• Decommissioning dead datanode:
  • add the datanode to the list of datanodes excluded from the cluster
  • refresh a list of datnodes allowed to communicate with the cluster
  • physically decommission / re-provision the datanode

Interfaces⌘

• Underlying interface:
  • Java API - native Hadoop access method
• Additional interfaces:
  • CLI
  • C interface
  • HTTP interface
  • FUSE

URIs⌘

• [path] - local HDFS filesystem
• file://[path] - local HDFS filesystem
• hdfs://[namenode]/[path] - remote HDFS filesystem
• http://[namenode]/[path] - HTTP
• viewfs://[path] - ViewFS

Java interface⌘

• Reminder: Hadoop is written in Java
• Destined to Hadoop developers rather than administrators
• Based on the FileSystem class
• Reading data:
  • by streaming from Hadoop URIs
  • by using Hadoop API
• Writing data:
  • by streaming to Hadoop URIs
  • by appending to files

Command-line interface⌘

• Shell-like commands
• All begin with the hdfs keyword
• No current working directory
• Overriding replication factor:

hdfs dfs -setrep [RF] [file]

• All commands available here

Base commands⌘

• hdfs dfs -mkdir [URI] - creates directory
• hdfs dfs -rm [URI] - removes file
• hdfs dfs -rm -r [URI] - removes directory
• hdfs dfs -cat [URI] - displays content of file
• hdfs dfs -ls [URI] - displays content of directory
• hdfs dfs -cp [source URI] [destination URI] - copies file or directory
• hdfs dfs -mv [source URI] [destination URI] - moves file or directory
• hdfs dfs -du [URI] - displays size of file or directory

Base commands #2⌘

• hdfs dfs -chmod [mode] [URI] - changes permissions of file or directory
• hdfs dfs -chown [owner] [URI] - changes owner of file or directory
• hdfs dfs -chgrp [group] [URI] - changes owner group of file or directory
• hdfs dfs -put [source path] [destination URI] - uploads data into HDFS
• hdfs dfs -getmerge [source directory] [destination file] - merges files from directory into single file
• hadoop archive -archiveName [name] [source URI]* [destination URI] - creates Hadoop archive
• hadoop fsck [URI] - performs HDFS filesystem check
• hadoop version - displays Hadoop version

C interface⌘

• libhdfs library
• Mirrors Java FileSystem interface
• Leverages JNI (Java Native Interface)
• Documentation: libhdfs/docs/api directory
• Home page: http://wiki.apache.org/hadoop/libHDFS

HTTP interface⌘

• HDFS HTTP ports:
  • 50070 - namenode
  • 50075 - datanode
  • 50090 - secondary namenode
• Access methods:
  • direct
  • via proxy
• Pure HTTP vs WebHDFS vs HTTPFS

FUSE⌘

• Reminder:
  • HDFS is user space filesystem
  • HDFS is not POSIX-compliant filesystem
• Fuse-DFS module
• Allows HDFS to me mounted under the Linux FHS (Filesystem Hierarchy Standard)
• Allows Unix tools to be used against mounted HDFS data structures
• Documentation: src/contrib/fuse-dfs

Quotas⌘

• Count quotas vs space quotas:
  • count quotas - limit a number of files in HDFS directory
  • space quotas - limit a post-replication disk space utilization of HDFS directory
• Setting quotas:

hadoop dfsadmin -setQuota [count] [path]
hadoop dfsadmin -setSpaceQuota [size] [path]

• Removing quotas:

hadoop dfsadmin -clrQuota [path]
hadoop dfsadmin -clrSpaceQuota [path]

• Viewing quotas:

hadoop fs -count -q [path]

Limitations⌘

• Low-latency data access:
  • tens of milliseconds
  • alternatives: HBase, Cassandra
• Lots of small files
  • limited by namenode memory in use
  • inefficient storage utilization due to large block size
• Multiple writers, arbitrary file modifications:
  • single writer
  • append operations only

First Day - Session III⌘

MapReduce

http://cacm.acm.org/system/assets/0000/2020/121609_CACMpg73_MapReduce_A_Flexible.large.jpg

Goals and motivation⌘

• Simplicity of development:
  • MapReduce programs are simple functional programs for data processing
  • all background activities are handled by the MapReduce itself
• Scalability:
  • parallelism
  • ease of extension
• Automatic parallelization and distribution of work:
  • developers are required to write map and reduce functions only
  • distribution and parallelism are handled by the MapReduce itself
• Fault tolerance:
  • tasks distribution
  • jobs high availability

Design⌘

• Fully automated parallel data processing computing paradigm
• Job abstraction as an atomic unit
• Job return key-value pairs
• Job components:
  • map tasks
  • reduce tasks
• Benefits:
  • simplicity of development
  • fast processing time of a large data sets

Daemonos⌘

• Jobtracker:
  • responsible for MapReduce jobs execution
  • 1 active per cluster
• Tasktracker:
  • responsible for MapReduce tasks execution
  • many per cluster

MapReduce job stages⌘

1. A client creates a job object using the Java MapReduce API
2. The client retrieves a new job ID from the jobtracker
3. The client calculates input splits and writes the job resources (e.g. jar file) on HDFS
4. The client submits the job by calling submitApplication() procedure on the jobtracker
5. The jobtracker initializes the job
6. The jobtracker retrieves the job resources from HDFS
7. The jobtracker allocates tasks on tasktrackers based on a scheduler in use
8. The tasktrackers retrieve the job resources and data from HDFS
9. The tasktrackers launch a separate JVM for task execution purpose
10. The tasktrackers periodically report progress and status updates to the jobtracker
11. The client periodically polls the jobtracker for progress and status updates
12. On the job completion the jobtracker and the tasktrackers clean up their working state

MapReduce job stages #2⌘

T. White. "Hadoop: The Definitive Guide"

Schufle and sort⌘

1. The tasktrackers execute the map function against the chunk of data they process
2. The tasktrackers write the intermediate key-value pairs returned as an output of the map function in a circular memory buffer
3. The tasktrackers partition the content of the circular memory buffer, sort it by key and spill to disks
4. The tasktrackers execute the combiner function against the partitioned and sorted key-value pairs
5. The tasktrackers merge the intermediate key-value pairs returned as an output of the combiner function to an output files
6. Another tasktrackers fetch the output files and merge them
7. The tasktrackers execute the reduce function against the intermediate key-value pairs
8. The tasktrackers write ultimate key-value pairs into HDFS

Schufle and sort #2⌘

http://blog.cloudera.com/wp-content/uploads/2014/03/ssd1.png

MapReduce by analogy⌘

• Lab Exercise 1.3.1
• Lab Exercise 1.3.2

Map task in details⌘

• Map function:
  • takes key-value pair
  • returns key-value pair
• Input key-value pair: file-line (record)
• Output key-value pair: defined by the map function
• Output key-value pairs are sorted by the key
• Partitioner assigns each key-value pair to a partition

Reduce task in details⌘

• Reduce function:
  • takes key-value pair
  • returns key-value pair
• Input key-value pair: returned by the map function
• Output key-value pair: final result
• Input is received in the shuffle and sort step
• Each reducer is assigned with one or more partitions
• Reducer copies the data from partitions as soon as they are written
• Reducer merges intermediate key-value pair based on the key

Sample data⌘

• http://academic.udayton.edu/kissock/http/Weather/gsod95-current/allsites.zip

 1             1             1995         82.4
 1             2             1995         75.1
 1             3             1995         73.7
 1             4             1995         77.1
 1             5             1995         79.5
 1             6             1995         71.3
 1             7             1995         71.4
 1             8             1995         75.2
 1             9             1995         66.3
 1             10            1995         61.8

Sample map function⌘

• Function:

#!/usr/bin/perl
use strict;
my %results;
while (<>)
{
    $_ =~ m/.*(\d{4}).*\s(\d+\.\d+)/;
    push (@{$results{$1}}, $2);
}
foreach my $year (sort keys %results)
{
    print "$year: ";
    foreach my $temperature (@{$results{$year}})
    {
   	 print "$temperature ";
    }
    print "\n";
}

• Function output:

year: temperature1 temperature2 ...

Sample reduce function⌘

• Function:

#!/usr/bin/perl
use List::Util qw(max);
use strict;
my %results;
while (<>)
{
    $_ =~ m/(\d{4})\:\s(.*)/;
    my @temperatures = split(' ', $2);
    @{$results{$1}} = @temperatures;
}
foreach my $year (sort keys %results)
{
    my $temperature = max(@{$results{$year}});
    print "$year: $temperature\n";
}

• Function output:

year: temperature

Combine function⌘

• Executed by the map task
• Executed just after the map function
• Most often the same as the reduce function
• Lab Exercise 1.3.3

High Availability⌘

• Jobtracker - SPOF
• High availability type: active / passive
• Failover type: manual / automatic
• Automatic failover based on Apache ZooKeeper failover controller
• STONITH
• Fencing methods
• Lab Exercise 1.3.4

Schedulers⌘

• Worker nodes resources:
  • CPU
  • RAM
  • IO
  • network bandwidth
• Each job has different requirements
• Data locality concern
• Schedulers:
  • FIFO scheduler
  • Fair scheduler
  • Capacity scheduler

FIFO scheduler⌘

• FIFO (First In First Out)
• Default scheduler in MRv1
• Priorities:
  • 5 levels
  • each priority is a separate FIFO queue
• Suitable for small, development or experimental environments

Fair scheduler⌘

• Developed by Matei Zahara as a part of his PhD thesis to bypass limitations of the FIFO scheduler
• Support for SLAs (Service Level Agreements) and multi-tenant environments
• Design:
  • submitted jobs are placed in pools
  • each pool is assigned with a number of task slots based on an available cluster capacity and pool parameters
  • into which pool should the scheduler assign the MapReduce job is defined in the job's property

Fair scheduler #2⌘

• Fairness:
  • pools with demands are allocated first
  • pools without demands are allocated later
  • pools are allocated with at least as much slots as guaranteed by the minshare parameter
  • pools are not allocated with more slots then they need
  • pools are allocate equally based on their weight after fulfilling all previous requirements
• Suitable for production environments
• Lab Exercise 1.3.5

Capacity scheduler⌘

• Developed by Hadoop team at Yachoo to bypass limitations of the FIFO scheduler
• Support for SLAs and multi-tenant environments
• Design:
  • submitted jobs are placed in queues
  • internal queue order is FIFO with priorities
  • each queue is assigned with a capacity representing the number of task slots
  • the most starved queues receive task slots first
  • queue starvation is measured by its percentage utilization
  • queues can be hierarchical
• Complex configuration
• Suitable for production environments

Java MapReduce⌘

• MapReduce jobs written in Java
• org.apache.hadoop.mapreduce namespace:
  • Mapper class and map() function
  • Reducer class and reduce() function
• Executed by the hadoop program
• Sample Java MapReduce job: here [[1]]
• Sample Java MapReduce job execution:

hadoop [MapReduce program path] [input data path] [output data path]

Streaming⌘

• Leverages hadoop-streaming.jar class
• Supports all languages capable of reading from stdin and writing to stdout
• Sample streaming MapReduce job execution:

hadoop jar [hadoop-streaming.jar path] \
-input [input data path] \
-output [output data path] \
-mapper [map function path] \
-reducer [reduce function path] \
-combiner [combiner function path] \
-file [attached files path]*

• * - for each attached function

Pipes⌘

• Supports all languages capable of reading from and writing to network sockets
• Mostly applicable for C and C++ languages
• Sample streaming MapReduce job execution:

hadoop pipes \
-D hadoop.pipes.java.recordreader=true
-D hadoop.pipes.java.recordwriter=true
-input [input data path] \
-output [output data path] \
-program [MapReduce program path]
-file [attached files path]*

• - for each attached program

Limitations⌘

If one woman can have a baby in nine months, nine women should be able to have a baby in one month.

• Batch processing system:
  • MapReduce jobs run on the order of minutes or hours
  • optimized for full table scan operations
  • no support for low-latency data access
• Simplicity:
  • no support for data access optimization
• Too low-level:
  • raw data processing functions
  • alternatives: Pig, Hive
• Not all algorithms can be parallelized:
  • algorithms with shared state
  • algorithms with dependent variables

First Day - Session IV⌘

YARN

http://th00.deviantart.net/fs71/PRE/f/2013/185/c/9/spinning_yarn_by_chaosfissure-d6byoqu.jpg

Goals and motivation⌘

• Segregation of services:
  • Single MapReduce service for resource and application management purpose
  • Separate YARN services for resource and application management purpose
• Scalability / resource pressure on the jobtracker:
  • MapReduce framework hits scalability limitations in clusters consisting of around 5000 nodes
  • YARN framework doesn’t hit scalability limitations in clusters consisting of around 40000 nodes
• Flexibility:
  • MapReduce framework is capable of executing MapReduce jobs only
  • YARN framework is capable of executing jobs other than MapReduce

Daemons⌘

• ResourceManager:
  • responsible for cluster resources management and applications execution
  • consists of the scheduler and application manager components
  • 1 active per cluster
• NodeManager:
  • responsible for node resources management and applications execution
  • can run YARN containers or application master process
  • many per cluster
• JobHistoryServer:
  • responsible for serving information about completed jobs
  • 1 active per cluster

Design⌘

http://hadoop.apache.org/docs/r2.3.0/hadoop-yarn/hadoop-yarn-site/YARN.html

YARN job stages part 1⌘

1. A client creates a job object using the same Java MapReduce API as in MRv1
2. The client retrieves a new application ID from the resource manager
3. The client calculates input splits and writes the job resources (e.g. jar file) on HDFS
4. The client submits the job by calling submitApplication() procedure on the resource manager
5. The resource manager allocates a container for the job execution purpose and launches the application master process on the node manager
6. The application master initializes the job
7. The application master retrieves the job resources from HDFS
8. The application master requests for containers for tasks execution purpose from the resource manager

YARN job stages part 2⌘

1. The resource manager allocates tasks on containers based on a scheduler in use
2. The containers launch a separate JVM for task execution purpose
3. The containers retrieve the job resources and data from HDFS
4. The containers periodically report progress and status updates to the application master
5. The client periodically polls the application master for progress and status updates
6. On the job completion the application master and the containers clean up their working state

YARN job stages #2⌘

http://pravinchavan.files.wordpress.com/2013/04/yarn-2.png

ResourceManager high availability⌘

• ResourceManager - SPOF
• High Availability type: active / passive
• Failover type: manual / automatic
• Automatic failover based on the Apache ZooKeeper failover controller
• ZFCK daemon embedded in the resourcemanager code
• STONITH
• Fencing methods
• Administration tool: yarn rmadmin

Resource configuration⌘

• No distinction between resources available for map and reduce tasks
• Resource requests for memory and virtual cores
• Resource configuration (yarn-site.xml):
  • yarn.nodemanager.resource.memory-mb - available memory in megabytes
  • yarn.nodemanager.resource.cpu-vcores - available number of virtual cores
  • yarn.scheduler.minimum-allocation-mb - minimum allocated memory in megabytes
  • yarn.scheduler.minimum-allocation-vcores - minimum number of allocated virtual cores
  • yarn.scheduler.increment-allocation-mb - increment memory in megabytes into which the request is rounded up
  • yarn.scheduler.increment-allocation-vcores - increment number of virtual cores into which the request is rounded up
• Lab Exercise 1.4.1

Second Day - Session I⌘

Pseudo-distributed mode

http://www.cpusage.com/blog/wp-content/uploads/2013/11/distributed-computing-1.jpg

Hadoop installation in pseudo-distributed
mode⌘

• Lab Exercise 2.1.1
• Lab Exercise 2.1.2
• Lab Exercise 2.1.3
• Lab Exercise 2.1.4

Second Day - Session II⌘

Running MapReduce jobs

http://news.nost.org.cn/wp-content/uploads/2013/06/BigDataBigBuildings.jpg

Running MapReduce jobs in
pseudo-distributed mode⌘

• Lab Exercise 2.2.1
• Lab Exercise 2.2.2
• Lab Exercise 2.2.3
• Lab Exercise 2.2.4
• Lab Exercise 2.2.5
• Lab Exercise 2.2.6

Second Day - Session III⌘

Hadoop ecosystem

http://www.imaso.co.kr/data/article/1(2542).jpg

Pig - Goals and motivation⌘

• Developed by Yachoo
• Simplicity of development:
  • however, MapReduce programs themselves are simple, designing complex regular expressions may be challenging and time consuming
  • Pig offers much reacher data structures for pattern matching purpose
• Length and clarity of the source code:
  • MapReduce programs are usually long and comprehensible
  • Pig programs are usually short and understandable
• Simplicity of execution:
  • MapReduce programs require compiling, packaging and submitting the job
  • Pig programs can be written and executed from the console

Pig - Design⌘

• Pig components:
  • Pig Latin - scripting language for data flows
    • each program is made up of series of transformations applied to the input data
    • each transformation is made up of series of MapReduce jobs run on the input data
  • Pig Latin programs execution environment:
    • local execution in a single JVM
    • execution distributed over the Hadoop cluster

Pig - relational operators⌘

• LOAD - loads data from the filesystem or other storage into a relation
• STORE - saves the relation to a filesystem or other storage
• DUMP - prints the relation to the console
• FILTER - removes unwanted rows from the relation
• DISTINCT - removes duplicate rows from the relation
• MAPREDUCE - runs MapReduce job using the relation as an input
• TRANSFORM - transforms the relation using an external program
• SAMPLE - selects a random sample of the relation
• JOIN - joins two or more relations
• GROUP - groups the data in a single relation
• ORDER - sorts the relation by one or more fields
• LIMIT - limits the size of the relation to a maximum number of tuples

Pig - mathematical and logical operators⌘

• literal - constant / variable
• $n - n-th column
• x + y / x - y - addition / substraction
• x * y / x / y - multiplication / division
• x == y / x != y - equals / not equals
• x > y / x < y - greater then / less then
• x >= y / x <= y - greater or equal then / less or equal then
• x matches y - pattern matching with regular expressions
• x is null - is null
• x is not null - is not null
• x or y - logical or
• x and y - logical and
• not x - logical negation

Pig - types⌘

• int - 32-bit signed integer
• long - 64-bit signed integer
• float - 32-bit floating-point number
• double - 64-bit floating-point number
• chararray - character array in UTF-16 format
• bytearray - byte array
• tuple - sequence of fields of any type
• map - set of key-value pairs:
  • key - character array
  • value - any type

Pig - Exercises⌘

• Lab Exercise 2.3.1

Hive - Goals and Motivation⌘

• Developed by Facebook
• Data structurization:
  • HDFS stores the data in an unstructured format
  • Hive stores the data in a structured format
• SQL interface:
  • HDFS does not provide the SQL interface
  • Hive provides the SQL interface
• Cost-effectiveness:
  • Hive is faster compared to regular MapReduce jobs

Hive - Design⌘

• Metastore:
  • central repository of Hive metadata:
    • metastore service
    • database
• HiveQL:
  • used to write data by uploading them into HDFS and updating the Metastore
  • used to read data by accepting queries and translating them to a series of MapReduce jobs
• Interfaces:
  • CLI
  • Web GUI
  • ODBC
  • JDBC

Hive - Data Types⌘

• TINYINT - 1-byte signed integer
• SMALLINT - 2-byte signed integer
• INT - 4-byte signed integer
• BIGINT - 8-byte signed integer
• FLOAT - 4-byte floating-point number
• D0UBLE - 8-byte floating-point number
• BOOLEAN - true/false value
• STRING - character string
• BINARY - byte array
• MAP - an unordered collection of key-value pairs

Hive - SQL vs HiveQL⌘

Feature	SQL	HiveQL
Updates	UPDATE, INSERT, DELETE	INSERT OVERWRITE TABLE
Transactions	Supported	Not Supported
Indexes	Supported	Not supported
Latency	Sub-second	Minutes
Multitable inserts	Partially supported	Supported
Create table as select	Partially supported	Supported
Views	Updatable	Read-only

Hive - Exercises⌘

• Lab Exercise 2.3.2

Sqoop - Goals and Motivation⌘

• Data formats diversity:
  • HDFS can store data in any format
  • MapReduce jobs can process data stored in any format
• Cooperation with RDBMS:
  • RDBMS are widely used for data storing purpose
  • need for importing / exporting data from RDBMS to HDFS and vice versa
• Data import / export flexibility:
  • manual data import / export using HDFS CLI, Pig or Hive
  • automatic data import / export using Sqoop

Sqoop - Design⌘

• JDBC - used to connect to the RDBMS
• SQL - used to retrieve / populate data from / to RDBMS
• MapReduce - used to retrieve / populate data from / to HDFS
• Sqoop Code Generator - used to create table-specific class to hold records extracted from the table

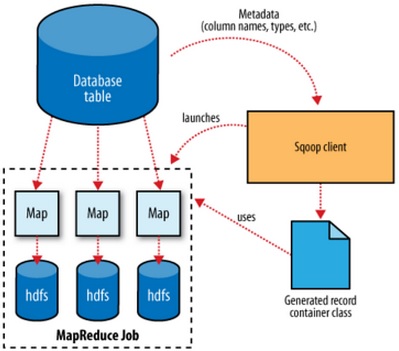

Sqoop - Import process⌘

T. White. "Hadoop: The Definitive Guide"

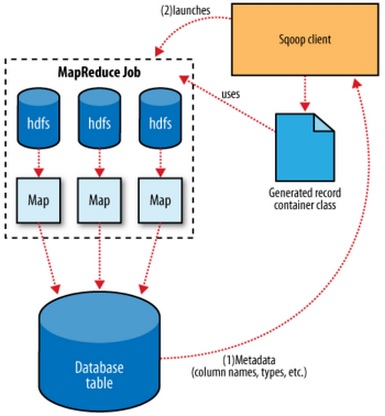

Sqoop - Export process⌘

T. White. "Hadoop: The Definitive Guide"

Sqoop - Exercises⌘

• Lab Exercise 2.3.3

HBase - Goals and Motivation⌘

• Designed by Google (BigTable)
• Developed by Apache
• Interactive queries:
  • MapReduce, Pig and Hive are batch processing frameworks
  • HBase is a real-time processing framework
• Data structurization:
  • HDFS stores data in an unstructured format
  • HBase stores data in a semi-structured format

HBase - Design⌘

• Runs on the top of HDFS
• Key-value NoSQL database
• Architecture:
  • tables are distributed across the cluster
  • tables are automatically partitioned horizontally into regions
  • tables consist of rows and columns
  • table cells are versioned (by a timestamp by default)
  • table cell type is an uninterpreted array of bytes
  • table rows are sorted by the row key which is the table's primary key
  • table columns are grouped into column families
  • table column families must be defined on the table creation stage
  • table columns can be added on the fly if the column family exists
• Metadata stored in the -ROOT- and .META. tables
• Data can be accessed interactively or using MapReduce

HBase - Exercises⌘

• Lab Exercise 2.3.4

Flume - Goals and motivation⌘

• Streaming data:
  • HDFS does not have any built-in mechanisms for handling streaming data flows
  • Flume is designed to collect, aggregate and move streaming data flows into HDFS
• Data queueing:
  • When writing directly to HDFS data are lost during spike periods
  • Flume is designed to queue data during spike periods
• Guarantee of data delivery:
  • Flume is designed to guarantee a delivery of data by using a single-hop message delivery semantics

Flume - Design⌘

What is Flume? Flume is a frontend to HDFS

• Event - unit of data that Flume can transport
• Flow - movement of the events from a point of origin to their final destination
• Client - an interface implementation that operates at the point of origin of the events
• Agent - an independent process that hosts flume components such as sources, channels and sinks
• Source - an interface implementation that can consume the events delivered to it and deliver them to channels
• Channel - a transient store for the events, which are delivered by the sources and removed by sinks
• Sink - an interface implementation that can remove the events from the channel and transmit them

Flume - Design #2⌘

http://archive.cloudera.com/cdh/3/flume-ng-1.1.0-cdh3u4/images/UserGuide_image00.png

Flume - Closer look⌘

• Flume sources:
  • Avro, HTTP, Syslog, etc.
  • https://flume.apache.org/FlumeUserGuide.html#flume-sources
• Sink types:
  • regular - transmits the event to another agent
  • terminal - transmits the event to its final destination
• Flow pipeline:
  • from one source to one destination
  • from multiple sources to one destination
  • from one source to multiple destinations
  • from multiple sources to multiple destinations

Oozie - Goals and motivation⌘

• Hadoop jobs execution:
  • Hadoop clients execute MapReduce jobs from CLI using hadoop command
  • Oozie provides web-based GUI for Hadoop jobs definition and execution
• Hadoop jobs management:
  • Hadoop doesn't provide any built-in mechanism for jobs management (e.g. forks, merges, decisions, etc.)
  • Oozie provides Hadoop jobs management feature based on a control dependency DAG

Oozie - Design⌘

What is Oozie? Oozie is a frontend to Hadoop jobs

• Oozie - workflow scheduling system
• Oozie workflow
  • control flow nodes:
    • define the beginning and the end of a workflow
    • provide a mechanism to control the workflow execution path
  • action nodes:
    • are mechanisms by which the workflow triggers an execution of Hadoop jobs
    • supported job types include Java MapReduce, Pig, Hive, Sqoop and more

Oozie - Web GUI⌘

http://www.gruter.com/download_files/cloumon-oozie-01.png

Second Day - Session IV⌘

Supporting tools and Big Data future

http://www.datacenterjournal.com/wp-content/uploads/2012/11/big-data1-612x300.jpg

Hue - Goals and motivation⌘

• Hadoop cluster management:
  • each Hadoop component is managed independently
  • Hue provides centralized Hadoop components management utility
  • Hadoop components are mostly managed from the CLI
  • Hue provides web-based GUI for Hadoop components management
• Open Source:
  • other cluster management software (i.e. Cloudera Manager) are payable and closed
  • Hue is free of charge and open-source software

Hue - Design⌘

What is Hue? Hue is a frontend to Hadoop components

• Hue components:
  • Hue server - web application's container
  • Hue database - web application's data
  • Hue UI - web user interface application
  • REST API - for communication with Hadoop components
• Supported browsers:
  • Google Chrome
  • Mozilla Firefox 17+
  • Internet Explorer 9+
  • Safari 5+
• Lab Exercise 2.4.1
• Lab Exercise 2.4.2

Hue - Design #2⌘

http://www.cloudera.com/content/cloudera-content/cloudera-docs/CDH4/4.3.0/Hue-2-User-Guide/images/huearch.jpg

Cloudera Manager - Goals and motivation⌘

• Hadoop cluster deployment and configuration:
  • Hadoop components need to be deployed and configured manually
  • Cloudera Manager provides automatic deployment and configuration of Hadoop components
• Hadoop cluster management:
  • each Hadoop component is managed independently
  • Cloudera Manager provides centralized Hadoop components management utility
  • Hadoop components are mostly managed from the CLI
  • Cloudera Manager provides web-based GUI for Hadoop components management

Cloudera Manager - Design⌘

What is Cloudera Manager? Cloudera Manager is a frontend to Hadoop components

• Cloudera Manager versions:
  • Express - deployment, configuration, management, monitoring and diagnostics
  • Enterprise - advanced management features and support
• Cloudera Manager components:
  • Cloudera Manager Server - web application's container and core Cloudera Manager engine
  • Cloudera Manager Database - web application's data and monitoring information
  • Admin Console - web user interface application
  • Agent - installed on every component in the cluster
  • REST API - for communication with Agents
• Lab Exercise 2.4.3
• Lab Exercise 2.4.4
• Lab Exercise 2.4.5

Cloudera Manager - Design #2⌘

http://www.cloudera.com/content/cloudera-content/cloudera-docs/Navigator/1.0/Cloudera-Navigator-Installation-and-User-Guide/images/image1.jpeg

Cassandra ⌘

• Designed by Amazon (DynamoDB)
• Developed by Facebook
• Data access optimization:
  • HDFS and HBase are optimized for read operations
  • Cassandra is optimized for write operations
• Cluster architecture:
  • HDFS and HBase nodes have dedicated roles assigned
  • Cassandra nodes are equal
• Cassandra vs HBase:
  • http://bigdatanoob.blogspot.com/2012/11/hbase-vs-cassandra.html
• So far Cassandra is a winner:
  • http://db-engines.com/en/ranking

Impala - Goals and Motivation⌘

• Designed by Google (Dremel)
• Developed by Cloudera
• Interactive queries:
  • MapReduce, Pig and Hive are batch processing frameworks
  • Impala is real-time processing framework
• Data structurization:
  • HDFS stores data in an unstructured format
  • HBase and Cassandra store data in semi-structured format
  • Impala stores data in a structured format
• SQL interface:
  • HDFS does not provide SQL interface
  • HBase and Cassandra do not provide SQL interface by default
  • Impala provides SQL interface

Impala - Design⌘

• Runs on the top of HDFS or HBase
• Leverages Hive metastore
• Implements SQL tables and queries
• Interfaces:
  • CLI
  • web GUI
  • ODBC
  • JDBC
• Daemons

Impala - Daemons⌘

• Impala Daemon:
  • performs read and write operations
  • accepts queries and returns query results
  • parallelizes queries and distributes the work
• Impala Statestore:
  • checks health of the Impala Daemons
  • reports detected failures to other nodes in the cluster
• Impala Catalog Server:
  • relays metadata changes to all nodes in the cluster

Tez - Goals and Motivation⌘

• Interactive queries:
  • MapReduce is a batch processing framework
  • Tez is a real-time processing framework
• Job types:
  • MapReduce is destined for key-value-based data processing
  • Tez is destined for DAG-based data processing

Tez - Design⌘

http://images.cnitblog.com/blog/312753/201310/19114512-89b2001bf0444863b5c11da4d5100401.png

Third Day - Sessions I and II⌘

Hadoop cluster planning

http://news.fincit.com/wp-content/uploads/2012/07/tangle.jpg

Picking a distribution⌘

• Considerations:
  • cost
  • open / closed source code
  • implemented Hadoop version
  • available features
  • supported OS types
  • ease of deployment
  • integrity
  • support

Hadoop releases⌘

http://drcos.boudnik.org/

• Release notes: http://hadoop.apache.org/releases.html

Hadoop releases and features⌘

E. Sammer. "Hadoop Operations"

• CDH Release Notes: http://www.cloudera.com/content/cloudera/en/documentation/cdh5/latest/CDH5-Release-Notes/CDH5-Release-Notes.html

Why CDH5?⌘

• Free
• Open source
• Fresh (always based on recent Hadoop releases)
• Wide range of available features
• Support for RHEL, SUSE and Debian
• Easy deployment process
• Very well integrated
• Very well supported

Hardware selection⌘

• Considerations:
  • CPU
  • RAM
  • storage IO
  • storage capacity
  • storage resilience
  • network bandwidth
  • network resilience
  • node resilience

Hardware selection #2⌘

• Master nodes:
  • namenodes
  • jobtrackers / resource managers
  • secondary namenode
• Worker nodes
• Network devices
• Supporting nodes

Namenode hardware selection⌘

• CPU: quad-core 2.6 GHz
• RAM: 24-96 GB DDR3 (1 GB per 1 million of blocks)
• Storage IO: SAS / SATA II
• Storage capacity: less than 1 TB
• Storage resilience: RAID
• Network bandwidth: 2 Gb/s
• Network resilience: LACP
• Node resilience: non-commodity hardware

Jobtracker / RM hardware selection⌘

• CPU: quad-core 2.6 GHz
• RAM: 24-96 GB DDR3 (unpredictable)
• Storage IO: SAS / SATA II
• Storage capacity: less than 1 TB
• Storage resilience: RAID
• Network bandwidth: 2 Gb/s
• Network resilience: LACP
• Node resilience: non-commodity hardware

Secondary namenode hardware selection⌘

• Almost always identical to namenode
• The same requirements for RAM, storage capacity and desired resilience level
• Very often used as a replacement hardware in case of namenode failure

Worker hardware selection⌘

• CPU: 2 * 6 core 2.9 GHz
• RAM: 64-96 GB DDR3
• Storage IO: SAS / SATA II
• Storage capacity: 24-36 TB JBOD
• Storage resilience: none
• Network bandwidth: 1-10 Gb/s
• Network resilience: none
• Node resilience: commodity hardware

Network devices hardware selection⌘

• Downlink bandwidth: 1-10 Gb/s
• Uplink bandwidth: 10 Gb/s
• Computing resources: vendor-specific
• Resilience: by network topology

Supporting nodes hardware selection⌘

• Backup system
• Monitoring system
• Security system
• Logging system

Planning cluster growth⌘

• Considerations:
  • replication factor: 3 by default
  • temporary data: 20-30% of the worker storage space
  • data growth: based on the trends analysis
  • the amount of data being analized: based on the cluster requirements
  • usual task RAM requirements: 2-4 GB
• Lab Exercise 3.1.1
• Lab Exercise 3.1.2

Network topologies⌘

• Hadoop East/West traffic flow design
• Network topologies:
  • Leaf
  • Spine
• Inter data center replication
• Lab Exercise 3.1.3

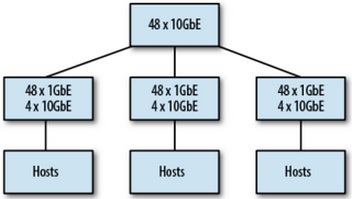

Leaf topology⌘

E. Sammer. "Hadoop Operations"

Spine topology⌘

E. Sammer. "Hadoop Operations"

Blades, SANs, RAIDs and virtualization⌘

• Blades considerations:
  • Hadoop is designed for the commodity hardware class in terms of resilience
  • Hadoop cluster scales out rather than up
• SANs considerations:
  • HDFS is distributed and shared by design
  • Hadoop is designed for processing local data
• RAIDs considerations:
  • Hadoop is designed for data fault tolerance
  • RAID introduces additional limitations and overhead
• Virtualization considerations:
  • Hadoop worker nodes don't benefit from virtualization
  • Hadoop is the clustering solution which is the opposite concept to virtualization

Hadoop directories⌘

Directory	Linux path	Grows?
Hadoop install directory	/usr/*	no
Namenode metadata directory	defined by an administrator	yes
Secondary namenode metadata directory	defined by an administrator	yes
Datanode data directory	defined by an administrator	yes
MapReduce local directory	defined by an administrator	no
Hadoop log directory	/var/log/*	yes
Hadoop pid directory	/var/run/hadoop	no
Hadoop temp directory	/tmp	no

Filesystems⌘

• LVM (Logical Volume Manager) - HDFS killer
• Considerations:
  • extent-based design
  • burn-in time
• Winners:
  • EXT4
  • XFS
• Lab Exercise 3.1.4

Third Day - Session III⌘

Security

http://tech.shopzilla.com/wp-content/uploads/2011/06/hadoop-security-logo.jpg

Identification, authentication, authorization⌘

• Identity:
  • Who does this user claim to be?
  • controlled by Hadoop operation mode
• Authentication:
  • Can this user prove they are who they say they are?
  • controlled by Hadoop operation mode
• Authorization:
  • Is this user allowed to do what they're asking to do?
  • controlled by Hadoop services
• Hadoop operation modes:
  • simple mode - uses system username as the identity
  • secure mode - uses Kerberos principal as the identity

Kerberos - foundations⌘

• Kerberos - strong authentication protocol
• Strong authentication - combines at least two authentication factors of different types:
  • "something you know"
  • "something you own"
  • "something you are"
• Kerberos - basic terms:
  • Principal - Kerberos user
  • Key - Kerberos user's password
  • Keytab - file containing an exported key
  • KDC (Key Distribution Center) - Kerberos service:
    • AS (Authentication Service) - serves TGTs
    • TGS (Ticket Granting Service) - serves Service Tickets

Kerberos - tickets⌘

• TGT (Ticket Granting Ticket) - used to obtain Service Ticket:
  • encrypted with principal's key
  • served to the principal by the AS
  • contains TGT key and other TGT session parameters
  • valid for a finite amount of time
• Service Ticket - used to grant an access for the principals to particular resources
  • encrypted with TGT key
  • served to the principal by the TGS
  • contains service key and other service session parameters (e.g. session key)
  • valid for a finite amount of time

Kerberos - authentication process⌘

• A Client sends cleartext authentication request to the AS providing Client ID and Service ID
• The AS sends a Client/TGS session key encrypted with the Client's key to the Client
• The AS sends a TGT encrypted with the Client/TGS session key to the Client
• The Client sends cleartext authentication request to the TGS providing the TGT and Service ID
• The Client sends another message encrypted with the Client/TGS session key to the TGS
• The TGS sends a Client/Service session key encrypted with the Client/TGS session key
• The TGS sends a Service Ticket (containing Client/Service session key) encrypted with the Service key
• The Client sends the Service Ticket encrypted with the Service key to the Service
• The Client sends an authentication request encrypted with the Client/Service session key to the Service providing Client ID
• The Service sends a confirmation message encrypted with the Client/Service session key to the client

Kerberos - principals⌘

• Kerberos principal:

[primary]/[instance]@[realm]

• • primary - name of the user / service
  • instance - host on which the user or service resides
  • realm - group of principals
• Hadoop primaries:
  • hdfs - used by namenode and datanode daemons
  • 'mapred - used by jobtracker, tasktracker and job history server daemons
  • yarn - used by resourcemanager and nodemanager daemons
  • [username] - used by Hadoop user

Configuring secure Hadoop cluster⌘

1. Audit all services to ensure enabling Kerberos authentication will not break anything.
2. Configure a working non-Kerberos enabled Hadoop cluster.
3. Configure a working Kerberos environment.
4. Ensure host name resolution is sane.
5. Create Hadoop Kerberos principals.
6. Export principal keys to keytabs and distribute them to the proper cluster nodes.
7. Update Hadoop configuration files.
8. Restart all services.
9. Test your environment.

Third Day - Session IV⌘

Monitoring and logging

http://cdn.cookefamily.us/wp-content/uploads/2013/07/Bigboard.jpg

IT monitoring⌘

• To monitor = to be aware of a state of the system
• Monitoring types:
  • health monitoring:
    • short-term or live-time monitoring based on current samples of metrics
    • used to determine whether the system is in an expected operational state
  • performance monitoring:
    • long-term monitoring based on samples of metrics gathered over time
    • used to determine system performance
• Monitoring software:
  • Hyperic HQ: http://www.hyperic.com/
  • Nagios: http://www.nagios.org/
  • Zabbix: http://www.zabbix.com/

Hadoop metrics⌘

• Hadoop has built-in support for exposing various metrics to outside systems
• Metrics contexts - group of related metrics:
  • jvm - contains JVM information and metrics (e.g. maximum heap size)
  • dfs - contains HDFS metrics (e.g. total HDFS capacity)
  • mapred - contains MapReduce metrics (e.g. total number of map slots)
  • rpc - contains RPC metrics (e.g. number of open connections)
• Access to metrics contexts needs to be enabled by plugins

Metric plugins⌘

• hadoop-metrics.properties - metrics configuration file
  • [context].class=org.apache.hadoop.metrics.spi.NullContext
    • metrics are neither collected nor exposed to the external systems
  • [context].class=org.apache.hadoop.metrics.spi.NoEmitMetricsContext
    • metrics are collected, but are not exposed to the external systems
  • [context].class=org.apache.hadoop.metrics.file.FileContext
    • metrics are collected and exposed to the external systems in a form of files
  • [context].class=org.apache.hadoop.metrics.ganglia.GangliaContext
    • metrics are collected and exposed to Ganglia software natively
• Example:

rpc.class=org.apache.hadoop.metrics.file.FileContext
rpc.filename=/tmp/rpcmetrics.log

• Although Cloudera distributes hadoop-metrics.properties file it does not support it!!!

REST interface⌘

• Metrics servlets:
  • /metrics - metrics1
  • /jmx - metrics2
• Metrics retrieval:
  • plain-text:

curl 'http://[node]:[port]/jmx'

• • JSON:

curl 'http://[node]:[port]/jmx?format=json'

• • Lab Exercise 3.4.1

Considerations⌘

• The following aspects should be considered when setting up the monitoring system:
  • what to monitor?
  • on which daemon?
  • what metrics to use?
  • what thresholds to set?
  • how often to notify?
  • who to notify?
  • should automated actions be configured instead of manual?

Hadoop monitoring - storage - namenode⌘

• What to monitor?
  • dfs.name.dir directory capacity
• On which daemon?
  • namenode
• What metrics to use?
  • Hadoop:service=NameNode,name=FSNamesystemState => CapacityRemaining
• What thresholds to set?
  • 5 to 30 days' capacity

Hadoop monitoring - storage - datanode⌘

• What to monitor?
  • dfs.data.dir and mapred.local.dir directories capacity and state
• On which daemon?
  • datanode
• What metrics to use?
  • Hadoop:service=DataNode,name=FSDatasetState-null => Remaining
  • Hadoop:service=DataNode,name=FSDatasetState-null => NumFailedVolumes
• What thresholds to set?
  • opt for higher-level checks on the aggregate HDFS and MapReduce service level metrics

Hadoop monitoring - memory⌘

• What to monitor?
  • physical and virtual memory utilization
• On which daemon?
  • namenode, secondary namenode, datanode, resource manager, node manager
• What metrics to use?
  • OperatingSystem => FreePhysicalMemorySize
  • OperatingSystem => FreeSwapSpaceSize
• What thresholds to set?
  • opt for higher-level checks on the aggregate HDFS and MapReduce service level metrics

Hadoop monitoring - processor⌘

• What to monitor?
  • load average
• On which daemon?
  • namenode, secondary namenode, datanode, resource manager, node manager
• What metrics to use?
  • OperatingSystem => SystemLoadAverage
• What thresholds to set?
  • [number of processors] * [number of cores]
  • monitor processor utilization for performance monitoring purpose only

Hadoop monitoring - Java heap size⌘

• What to monitor?
  • used heap size
• On which daemon?
  • namenode, resource manager
• What metrics to use?
  • java.lang:type=Memory => HeapMemoryUsage => used
  • java.lang:type=Memory => HeapMemoryUsage => max
• What thresholds to set?
  • measure the median used heap over a set of samples

Hadoop monitoring - Garbage collection⌘

• What to monitor?
  • duration of garbage collection events
• On which daemon?
  • namenode, resource manager
• What metrics to use?
  • java.lang:type=GarbageCollector,name=ConcurrentMarkSweep => LastGcInfo => duration
• What thresholds to set?
  • threshold vary by application (~1s)

Hadoop monitoring - HDFS capacity⌘

• What to monitor?
  • the absolute amount of HDFS capacity
• On which daemon?
  • namenode
• What metrics to use?
  • Hadoop:service=NameNode,name=FSNamesystemState => CapacityRemaining
• What thresholds to set?
  • depends on the data growth speed

Hadoop monitoring - HDFS metadata paths⌘

• What to monitor?
  • the absolute number of active metadata paths
• On which daemon?
  • namenode
• What metrics to use?
  • Hadoop:service=NameNode,name=NameNodeInfo => NameDirStatuses => failed
• What thresholds to set?
  • it should be equal to zero

Hadoop monitoring - HDFS blocks⌘

• What to monitor?
  • the absolute number of blocks which are missing, corrupted and allocated
• On which daemon?
  • namenode
• What metrics to use?
  • Hadoop:service=NameNode,name=FSNamesystem => MissingBlocks
  • Hadoop:service=NameNode,name=FSNamesystem => CorruptBlocks
  • Hadoop:service=NameNode,name=FSNamesystem => BlockCapacity
• What thresholds to set?
  • the number of blocks which are missing or corrupted should be equal to zero
  • the number of blocks which are allocated influences namenode heap size
• Lab Exercise 3.4.2

Log categories⌘

• Hadoop Daemon Logs - daemons startup (.out) and runtime (.log) messages
• Job Configuration XML - describes job configuration
• Job Statistics - contain job runtime statistics
• Standard Error - STDERR messages from tasks execution attempts
• Standard Out - STDOUT messages from tasks execution attempts
• log4j - information messages from within the task process

Log localization⌘

/var/log/hadoop-*/*.log		// daemon logs
	 /job_*.xml			// current jobs configuration XML logs
	 /history
		*_conf.xml		// history jobs configuration XML logs
		*			// job statistics logs
	 /userlogs
		/attempt_*
			/stderr		// standard error logs
			/stdout		// standard out logs
			/syslog		// log4j logs

• Lab Exercise 3.4.3

Hadoop Daemon Logs⌘

• Name:

hadoop-<user-running-hadoop>-<daemon>-<hostname>.log

• user-running-hadoop - username of the user who started the daemon
• daemon - name of the daemon the log file is associated with
• hostname - hostname of the machine on which the daemon is running

Job Configuration XML⌘

• Name:

<hostname>_<epoch-of-jobtracker-start>_<job-id>_conf.xml

• hostname - hostname of the machine on which the daemon is running
• epoch-of-jobtracker-start - number of seconds since 1st of January 1970
• job-id - job ID

Job Statistics⌘

• Name:

<hostname>_<epoch-of-jobtracker-start>_<job-id>_<job-name>

• hostname - hostname of the machine on which the daemon is running
• epoch-of-jobtracker-start - number of seconds since 1st of January 1970
• job-id - job ID
• job-name - name of the job

Standard Error and Standard Out⌘

• Name:

/var/log/hadoop/userlogs/attempt_<job-id>_<map-or-reduce>_<attempt-id>

• job-id - job ID
• map-or-reduce - m or r depending on the task type
• attempt-id - task attempt ID

Fourth Day - Session I, II, III and IV⌘

Hadoop cluster installation and configuration

http://www.michael-noll.com/blog/uploads/Yahoo-hadoop-cluster_OSCON_2007.jpeg

Underpinning software⌘

• Prerequisites:
  • JDK (Java Development Kit)
• Additional software:
  • Cron daemon
  • NTP client
  • SSH server
  • MTA (Mail Transport Agent)
  • RSYNC tool
  • NMAP tool

Hadoop users, groups and permissions⌘

• Users and groups:
  • hdfs - controls namenode, secondary namenode and datanode daemons operations
  • mapred - controls jobtracker and tasktracker daemons operation and client jobs execution
  • hadoop - legacy user and group
• Permissions:

Directory	User:Group	Permissions
Namenode metadata directories	hdfs:hadoop	0700
Secondary namenode metadata directories	hdfs:hadoop	0700
Datanode data directories	hdfs:hadoop	0700
Jobtracker local directories	mapred:hadoop	0770
Tasktracker local directories	mapred:hadoop	0700

Hadoop installation⌘

• Should be performed as a root user
• Installation instructions are distribution-dependent
• Installation types:
  • tarball installation
  • package installation

Hadoop package content⌘

• /etc/hadoop - configuration files
• /etc/rc.d/init.d - SYSV init scripts for Hadoop daemons
• /usr/bin - executables
• /usr/include/hadoop - C++ header files for Hadoop pipes
• /usr/lib - C libraries
• /usr/libexec - miscellaneous files used by various libraries and scripts
• /usr/sbin - administrator scripts
• /usr/share/doc/hadoop - License, NOTICE and README files

CDH-specific additions⌘

• Binaries for Hadoop Ecosystem
• Use of alternatives system for Hadoop configuration directory:
  • /etc/alternatives/hadoop-conf
• Default nofile and nproc limits:
  • /etc/security/limits.d
• Lab Exercise 4.1.1

Hadoop configuration⌘

• hadoop-env.sh - environmental variables
• core-site.xml - all daemons
• hdfs-site.xml - HDFS daemons
• mapred-site.xml - MapReduce daemons
• log4j.properties - logging information
• masters (optional) - list of servers which run secondary namenode daemon
• slaves (optional) - list of servers which run datanode and tasktracker daemons
• fair-scheduler.xml (optional) - fair scheduler configuration and properties
• capacity-scheduler.xml (optional) - capacity scheduler configuration and properties
• dfs.include (optional) - list of servers permitted to connect to the namenode
• dfs.exclude (optional) - list of servers denied to connect to the namenode
• hadoop-policy.xml - user / group permissions for RPC functions execution
• mapred-queue-acl.xml - user / group permissions for jobs submission

Hadoop XML files structure⌘

<?xml version="1.0"?>
<configuration>
    <property>
        <name>[name]</name>
        <value>[value]</value>
        (<final>{true | false}</final>)
    </property>
</configuration>

Hadoop configuration⌘

• Parameter: fs.default.name
• Configuration file: core-site.xml
• Purpose: specifies the default filesystem used by clients
• Format: Hadoop URL
• Used by: NN, SNN, DN, JT, TT, clients
• Example:

<property>
    <name>fs.default.name</name>
    <value>hdfs://namenode.hadooplab:8020</value>
</property>

Hadoop configuration⌘

• Parameter: io.file.buffer.size
• Configuration file: core-site.xml
• Purpose: specifies a size of the IO buffer
• Guidline: 64 KB
• Format: integer
• Used by: NN, SNN, DN, JT, TT, clients
• Example:

<property>
    <name>io.file.buffer.size</name>
    <value>65536</value>
</property>

Hadoop configuration⌘

• Parameter: fs.trash.interval
• Configuration file: core-site.xml
• Purpose: specifies the amount of time (in minutes) the file is retained in the .Trash directory
• Format: integer
• Used by: NN, clients
• Example:

<property>
    <name>fs.trash.interval</name>
    <value>60</value>
</property>

Hadoop configuration⌘

• Parameter: ha.zookeeper.quorum
• Configuration file: core-site.xml
• Purpose: specifies the list of ZKFCs for automatic jobtracker failover purpose
• Format: comma separated list of hostname:port pairs
• Used by: JT
• Example:

<property>
    <name>ha.zookeeper.quorum</name>
    <value>jobtracker1.hadooplab:2181,jobtracker2.hadooplab:2181</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.name.dir
• Configuration file: hdfs-site.xml
• Purpose: specifies where the namenode should store a copy of the HDFS metadata
• Format: comma separated list of Hadoop URLs
• Used by: NN
• Example:

<property>
    <name>fs.default.name</name>
    <value>file:///namenodedir,file:///mnt/nfs/namenodedir</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.data.dir
• Configuration file: hdfs-site.xml
• Purpose: specifies where the datanode should store HDFS data
• Format: comma separated list of Hadoop URLs
• Used by: DN
• Example:

<property>
    <name>fs.default.name</name>
    <value>file:///datanodedir1,file:///datanodedir2</value>
</property>

Hadoop configuration⌘

• Parameter: fs.checkpoint.dir
• Configuration file: hdfs-site.xml
• Purpose: specifies where the secondary namenode should store HDFS metadata
• Format: comma separated list of Hadoop URLs
• Used by: SNN
• Example:

<property>
    <name>fs.checkpoint.dir</name>
    <value>file:///secondarynamenodedir</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.permissions.supergroup
• Configuration file: hdfs-site.xml
• Purpose: specifies a group permitted to perform all HDFS filesystem operations
• Format: string
• Used by: NN, clients
• Example:

<property>
    <name>dfs.permissions.supergroup</name>
    <value>supergroup</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.balance.bandwidthPerSec
• Configuration file: hdfs-site.xml
• Purpose: specifies the maximum allowed bandwidth for HDFS balancing operations
• Format: integer
• Used by: DN
• Example:

<property>
    <name>dfs.balance.bandwidthPerSec</name>
    <value>100000000</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.blocksize
• Configuration file: hdfs-site.xml
• Purpose: specifies the HDFS block size of newly created files
• Guideline: 64 MB
• Format: integer
• Used by: clients
• Example:

<property>
    <name>dfs.block.size</name>
    <value>67108864</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.datanode.du.reserved
• Configuration file: hdfs-site.xml
• Purpose: specifies the disk space reserved for MapReduce temporary data
• Guideline: 20-30% of the datanode disk space
• Format: integer
• Used by: DN
• Example:

<property>
    <name>dfs.datanode.du.reserved</name>
    <value>10737418240</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.namenode.handler.count
• Configuration file: hdfs-site.xml
• Purpose: specifies the number of concurrent namenode handlers
• Guideline: natural logarithm of the number of cluster nodes, times 20, as a whole number
• Format: integer
• Used by: NN
• Example:

<property>
    <name>dfs.namenode.handler.count</name>
    <value>105</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.datanode.failed.volumes.tolerated
• Configuration file: hdfs-site.xml
• Purpose: specifies the number of datanode disks that are permitted to die before failing the entire datanode
• Format: integer
• Used by: DN
• Example:

<property>
    <name>dfs.datanode.failed.volumes.tolerated</name>
    <value>0</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.hosts
• Configuration file: hdfs-site.xml
• Purpose: specifies the location of dfs.hosts file
• Format: Linux path
• Used by: NN
• Example:

<property>
    <name>dfs.hosts</name>
    <value>/etc/hadoop/conf/dfs.hosts</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.hosts.exclude
• Configuration file: hdfs-site.xml
• Purpose: specifies the location of dfs.hosts.exclude file
• Format: Linux path
• Used by: NN
• Example:

<property>
    <name>dfs.hosts.exclude</name>
    <value>/etc/hadoop/conf/dfs.hosts.exclude</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.nameservices
• Configuration file: hdfs-site.xml
• Purpose: specifies virtual namenode names used for the namenode HA and federation purpose
• Format: comma separated strings
• Used by: NN, clients
• Example:

<property>
    <name>dfs.nameservices</name>
    <value>HAcluster1,HAcluster2</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.ha.namenodes.[nameservice]
• Configuration file: hdfs-site.xml
• Purpose: specifies logical namenode names used for the namenode HA purpose
• Format: comma separated strings
• Used by: DN, NN, clients
• Example:

<property>
    <name>dfs.ha.namenodes.HAcluster1</name>
    <value>namenode1,namenode2</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.namenode.rpc-address.[nameservice].[namenode]
• Configuration file: hdfs-site.xml
• Purpose: specifies namenode RPC address used for the namenode HA purpose
• Format: Hadoop URL
• Used by: DN, NN, clients
• Example:

<property>
    <name>dfs.namenode.rpc-address.HAcluster1.namenode1</name>
    <value>http://namenode1.hadooplab:8020</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.namenode.http-address.[nameservice].[namenode]
• Configuration file: hdfs-site.xml
• Purpose: specifies namenode HTTP address used for the namenode HA purpose
• Format: Hadoop URL
• Used by: DN, NN, clients
• Example:

<property>
    <name>dfs.namenode.http-address.[nameservice].[namenode]</name>
    <value>http://namenode1.hadooplab:50070</value>
</property>

Hadoop configuration⌘

• Parameter: topology.script.file.name
• Configuration file: core-site.xml
• Purpose: specifies the location of a script for rack-awareness purpose
• Format: Linux path
• Used by: NN
• Example:

<property>
    <name>topology.script.file.name</name>
    <value>/etc/hadoop/conf/topology.sh</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.namenode.shared.edits.dir
• Configuration file: hdfs-site.xml
• Purpose: specifies the location of shared directory on QJM with namenode metadata for namenode HA purpose
• Format: Hadoop URL
• Used by: NN, clients
• Example:

<property>
    <name>dfs.namenode.shared.edits.dir</name>
    <value>qjournal://namenode1.hadooplab.com:8485/hadoop/hdfs/HAcluster</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.client.failover.proxy.provider.[nameservice]
• Configuration file: hdfs-site.xml
• Purpose: specifies the class used for locating active namenode for namenode HA purpose
• Format: Java class
• Used by: DN, clients
• Example:

<property>
    <name>dfs.client.failover.proxy.provider.HAcluster1</name>
    <value>org.apache.hadoop.hdfs.server.namenode.ha.ConfiguredFailoverProxyProvider</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.ha.fencing.methods
• Configuration file: hdfs-site.xml
• Purpose: specifies the fencing methods for namenode HA purpose
• Format: new line-separated list of Linux paths
• Used by: NN
• Example:

<property>
    <name>dfs.ha.fencing.methods</name>
    <value>/usr/local/bin/STONITH.sh</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.ha.automatic-failover.enabled
• Configuration file: hdfs-site.xml
• Purpose: specifies whether the automatic namenode failover is enabled or not
• Format: 'true' / 'false'
• Used by: NN, clients
• Example:

<property>
    <name>dfs.ha.automatic-failover.enabled</name>
    <value>true</value>
</property>

Hadoop configuration⌘

• Parameter: ha.zookeeper.quorum
• Configuration file: hdfs-site.xml
• Purpose: specifies the list of ZKFCs for automatic namenode failover purpose
• Format: comma separated list of hostname:port pairs
• Used by: NN
• Example:

<property>
    <name>ha.zookeeper.quorum</name>
    <value>namenode1.hadooplab:2181,namenode2.hadooplab:2181</value>
</property>

Hadoop configuration⌘

• Parameter: fs.viewfs.mounttable.default.link.[path]
• Configuration file: hdfs-site.xml
• Purpose: specifies the mount point of the namenode or namenode cluster for namenode federation purpose
• Format: Hadoop URL or namenode cluster virtual name
• Used by: NN
• Example:

<property>
    <name>fs.viewfs.mounttable.default.link./federation1</name>
    <value>hdfs://namenode.hadooplabl:8020</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.job.tracker
• Configuration file: mapred-site.xml
• Purpose: specifies the location of jobtracker
• Format: hostname:port
• Used by: JT, TT, clients
• Example:

<property>
    <name>mapred.job.tracker</name>
    <value>jobtracker.hadooplab:8021</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.local.dir
• Configuration file: mapred-site.xml
• Purpose: specifies where the jobtracker and tasktracker should store MapReduce temporary data
• Format: comma separated list of Hadoop URLs
• Used by: JT, TT
• Example:

<property>
    <name>mapred.local.dir</name>
    <value>file:///mapredlocaldir</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.java.child.opts
• Configuration file: mapred-site.xml
• Purpose: specifies the java options automatically applied when launching JVM for job / task execution pupose
• Format: -string
• Used by: JT, TT
• Example:

<property>
    <name>mapred.java.child.opts</name>
    <value>-Xmx1g</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.child.ulimit
• Configuration file: mapred-site.xml
• Purpose: specifies the maximum amount of virtual memory a task is permitted to consume
• Guideline: 1.5 times the size of the JVM max heap size
• Format: integer
• Used by: TT
• Example:

<property>
    <name>mapred.child.ulimit</name>
    <value>1572864</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.tasktracker.map.tasks.maximum
• Configuration file: mapred-site.xml
• Purpose: specifies the maximum number of map tasks to run in parallel
• Format: integer
• Used by: TT
• Example:

<property>
    <name>mapred.tasktracker.map.tasks.maximum</name>
    <value>10</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.tasktracker.reduce.tasks.maximum
• Configuration file: mapred-site.xml
• Purpose: specifies the maximum number of reduce tasks to run in parallel
• Format: integer
• Used by: TT
• Example:

<property>
    <name>mapred.tasktracker.reduce.tasks.maximum</name>
    <value>1</value>
</property>

Hadoop configuration⌘

• Parameter: io.sort.mb
• Configuration file: mapred-site.xml
• Purpose: specifies the size of the circular in-memory buffer used to store MapReduce temporary data
• Guideline: ~10% of the JVM heap size
• Format: integer (MB)
• Used by: TT
• Example:

<property>
    <name>io.sort.mb</name>
    <value>128</value>
</property>

Hadoop configuration⌘

• Parameter: io.sort.factor
• Configuration file: mapred-site.xml
• Purpose: specifies the number of files to merge at once
• Guideline: 64 for 1 GB JVM heap size
• Format: integer
• Used by: TT
• Example:

<property>
    <name>io.sort.factor</name>
    <value>64</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.compress.map.output
• Configuration file: mapred-site.xml
• Purpose: specifies whether the output of the map tasks should be compressed or not
• Format: 'true' / 'false'
• Used by: TT
• Example:

<property>
    <name>mapred.compress.map.output</name>
    <value>true</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.map.output.compression.codec
• Configuration file: mapred-site.xml
• Purpose: specifies the codec used for map tasks output compression
• Format: Java class
• Used by: TT
• Example:

<property>
    <name>mapred.map.output.compression.codec</name>
    <value>org.apache.io.compress.SnappyCodec</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.output.compression.type
• Configuration file: mapred-site.xml
• Purpose: specifies whether the compression should be applied to the values only, key-value pairs or not at all
• Format: 'RECORD' / 'BLOCK' / 'NONE'
• Used by: TT
• Example:

<property>
    <name>mapred.output.compression.type</name>
    <value>BLOCK</value>
</property>

Hadoop configuration⌘

• Parameter: map.job.tracker.handler.count
• Configuration file: mapred-site.xml
• Purpose: specifies the number of concurrent jobtracker handlers
• Guideline: natural logarithm of the number of cluster nodes, times 20, as a whole number
• Format: integer
• Used by: JT
• Example:

<property>
    <name>map.job.tracker.handler.count</name>
    <value>105</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.jobtracker.taskScheduler
• Configuration file: mapred-site.xml
• Purpose: specifies the scheduler used for the MapReduce jobs
• Format: Java class
• Used by: JT
• Example:

<property>
    <name>mapred.jobtracker.taskScheduler</name>
    <value>org.apache.hadoop.mapred.FairScheduler</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.reduce.parallel.copies
• Configuration file: mapred-site.xml
• Purpose: specifies the number of threads started in parallel to fetch the output from map tasks
• Guideline: natural logarithm of the size of the cluster, times four, as a whole number
• Format: integer
• Used by: TT
• Example:

<property>
    <name>mapred.reduce.parallel.copies</name>
    <value>5</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.reduce.tasks
• Configuration file: mapred-site.xml
• Purpose: specifies the number of reduce tasks to use for the MapReduce jobs
• Format: integer
• Used by: JT
• Example:

<property>
    <name>mapred.reduce.tasks</name>
    <value>1</value>
</property>

Hadoop configuration⌘

• Parameter: tasktracker.http.threads
• Configuration file: mapred-site.xml
• Purpose: specifies the number of threads started in parallel to serve the output of map tasks
• Format: integer
• Used by: JT
• Example:

<property>
    <name>tasktracker.http.threads</name>
    <value>1</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.reduce.slowstart.completed.maps
• Configuration file: mapred-site.xml
• Purpose: specifies when to start allocating reducers as the number of complete map tasks grows
• Format: float
• Used by: JT
• Example:

<property>
    <name>mapred.reduce.slowstart.completed.maps</name>
    <value>0.5</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.jobtrackers.[nameservice]
• Configuration file: mapred-site.xml
• Purpose: specifies logical jobtracker names used for the jobtracker HA purpose
• Format: comma separated strings
• Used by: JT, TT, clients
• Example:

<property>
    <name>mapred.jobtrackers.HAcluster</name>
    <value>jobtracker1,jobtracker2</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.ha.jobtracker.id
• Configuration file: mapred-site.xml
• Purpose: specifies preferred jobtracker for an active unit
• Format: string
• Used by: JT, TT, clients
• Example:

<property>
    <name>mapred.ha.jobtracker.id</name>
    <value>jobtracker1</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.jobtracker.rpc-address.[nameservice].[jobtracker]
• Configuration file: mapred-site.xml
• Purpose: specifies jobtracker RPC address
• Format: Hadoop URL
• Used by: JT, TT, clients
• Example:

<property>
    <name>mapred.jobtracker.rpc-address.HAcluster.jobtracker1</name>
    <value>http://jobtracker1.hadooplab:8021</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.jobtracker.http-address.[nameservice].[jobtracker]
• Configuration file: mapred-site.xml
• Purpose: specifies jobtracker HTTP address
• Format: Hadoop URL
• Used by: JT, TT
• Example:

<property>
    <name>mapred.jobtracker.http-address.HAcluster.jobtracker1</name>
    <value>http://jobtracker1.hadooplab:50030</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.ha.jobtracker.rpc-address.[nameservice].[jobtracker]
• Configuration file: mapred-site.xml
• Purpose: specifies jobtracker RPC address used for the jobtracker HA purpose
• Format: Hadoop URL
• Used by: JT
• Example:

<property>
    <name>mapred.ha.jobtracker.rpc-address.HAcluster.jobtracker1</name>
    <value>http://jobtracker1.hadooplab:8022</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.ha.jobtracker.http-redirect-address.[nameservice].[jobtracker]
• Configuration file: mapred-site.xml
• Purpose: specifies jobtracker HTTP address for the jobtracker HA purpose
• Format: Hadoop URL
• Used by: JT
• Example:

<property>
    <name>mapred.ha.jobtracker.http-redirect-address.HAcluster.jobtracker1</name>
    <value>http://jobtracker1.hadooplab:50030</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.client.failover.proxy.provider.[nameservice]
• Configuration file: mapred-site.xml
• Purpose: specifies the class used for locating active jobtracker for jobtracker HA purpose
• Format: Java class
• Used by: TT, clients
• Example:

<property>
    <name>mapred.client.failover.proxy.provider.HAcluster</name>
    <value>org.apache.hadoop.mapred.ConfiguredFailoverProxyProvider</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.client.failover.max.attempts
• Configuration file: mapred-site.xml
• Purpose: specifies the maximum number of times to try to fail over
• Format: integer
• Used by: TT, clients
• Example:

<property>
    <name>mapred.client.failover.max.attempts</name>
    <value>3</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.ha.fencing.methods
• Configuration file: mapred-site.xml
• Purpose: specifies the fencing methods for jobtracker HA purpose
• Format: new line-separated list of Linux paths
• Used by: JT
• Example:

<property>
    <name>mapred.ha.fencing.methods</name>
    <value>/usr/local/bin/STONITH.sh</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.ha.automatic-failover.enabled
• Configuration file: mapred-site.xml
• Purpose: enables automatic failover in jobtracker HA pair
• Format: boolean
• Used by: JT
• Example:

<property>
    <name>mapred.ha.automatic-failover.enabled</name>
    <value>true</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.jobtracker.restart.recover
• Configuration file: mapred-site.xml
• Purpose: enables job recovery on jobtracker restart or during the failover
• Format: boolean
• Used by: JT
• Example:

<property>
    <name>mapred.jobtracker.restart.recover</name>
    <value>true</value>
</property>

Hadoop configuration⌘

• Parameter: mapred.ha.zkfc.port
• Configuration file: mapred-site.xml
• Purpose: specifies ZKFC port
• Format: integer
• Used by: JT
• Example:

<property>
    <name>mapred.ha.zkfc.port</name>
    <value>8018</value>
</property>

Hadoop cluster tweaking⌘

• Make sure that hostname and canonical name are the same:
  • hostname - returned by the uname() syscall (uname -n)
  • canonical name - returned by the resolver
• Set the runtime memory swapiness to minimum:
  • set the value of /sys/proc/vm/swapiness file to 0
  • temporarily (manually or by using the sysctl command) or permanently (by editing the /etc/sysctl.conf file)
• Allow memory to be overcommited:
  • set the value of /sys/proc/vm/overcommit_memory file to 1
  • temporarily (manually or by using the sysctl command) or permanently (by editing the /etc/sysctl.conf file)
• Disable access time stamps:
  • mount the filesystems with noatime and nodiratime options
  • temporarily (by using the mount command) or permanently (by editing the /etc/fstab file)

Lab preparation⌘

• Lab Exercise 4.2.1
• Lab Exercise 4.2.2

Hadoop cluster installation and configuration - HDFS⌘

• Lab Exercise 4.3.1
• Lab Exercise 4.3.2
• Lab Exercise 4.3.3
• Lab Exercise 4.3.4
• Lab Exercise 4.3.5
• Lab Exercise 4.3.6

Hadoop cluster installation and configuration - MapReduce⌘

• Lab Exercise 4.4.1
• Lab Exercise 4.4.2
• Lab Exercise 4.4.3
• Lab Exercise 4.4.4

Fifth Day - Session I, II and III⌘

YARN cluster installation and configuration

http://mikepinta.com/wp-content/uploads/2014/07/Server-Room.jpg

Upgrading from MRv1 to YARN⌘

• Packages to be uninstalled:
  • hadoop-0.20-mapreduce
  • hadoop-0.20-mapreduce-jobtracker
  • hadoop-0.20-mapreduce-tasktracker
  • hadoop-0.20-mapreduce-zkfc
  • hadoop-0.20-mapreduce-jobtrackerha
• Packages to be installed:
  • hadoop-yarn
  • hadoop-mapreduce
  • hadoop-mapreduce-historyserver
  • hadoop-yarn-resourcemanager
  • hadoop-yarn-nodemanager

Minimal configuration⌘

• yarn-site.xml:

<?xml version="1.0" encoding="UTF-8"?>
<configuration>
    <property>
        <name>yarn.resourcemanager.hostname</name>
        <value>you.hostname.com</value>
    </property>
    <property>
        <name>yarn.nodemanager.aux-services</name>
        <value>mapreduce_shuffle</value>
    </property>
</configuration>

Minimal configuration #2⌘

• mapred-site.xml:

<?xml version="1.0" encoding="UTF-8"?>
<configuration>
    <property>
        <name>mapreduce.framework.name</name>
        <value>yarn</value>
    </property>
</configuration>

• Lab Exercise 2

Hadoop configuration⌘

• Parameter: fs.defaultFS
• Configuration file: core-site.xml
• Purpose: specifies the default filesystem used by clients
• Format: Hadoop URL
• Used by: NN, SNN, DN, RM, NM, clients
• Example:

<property>
    <name>fs.defaultFS</name>
    <value>hdfs://namenode.hadooplab:8020</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.hostname
• Configuration file: yarn-site.xml
• Purpose: specifies the location of resource manager
• Format: hostname:port
• Used by: RM, NM, clients
• Example:

<property>
    <name>yarn.resourcemanager.hostname</name>
    <value>resourcemanager.hadooplab:8021</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.nodemanager.local-dirs
• Configuration file: yarn-site.xml
• Purpose: specifies where the resource manager and node manager should store application temporary data
• Format: comma separated list of Hadoop URLs
• Used by: RM, NM
• Example:

<property>
    <name>yarn.nodemanager.local-dirs</name>
    <value>file:///applocaldir</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.nodemanager.resource.memory-mb
• Configuration file: yarn-site.xml
• Purpose: specifies memory in megabytes available for allocation for the applications
• Format: integer
• Used by: NM
• Example:

<property>
    <name>yarn.nodemanager.resource.memory-mb</name>
    <value>40960</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.nodemanager.resource.cpu-vcores
• Configuration file: yarn-site.xml
• Purpose: specifies virtual cores available for allocation for the applications
• Format: integer
• Used by: NM
• Example:

<property>
    <name>yarn.nodemanager.resource.cpu-vcores</name>
    <value>8</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.scheduler.minimum-allocation-mb
• Configuration file: yarn-site.xml
• Purpose: specifies minimum amount of memory in megabytes allocated for the applications
• Format: integer
• Used by: NM
• Example:

<property>
    <name>yarn.scheduler.minimum-allocation-mb</name>
    <value>2048</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.scheduler.minimum-allocation-vcores
• Configuration file: yarn-site.xml
• Purpose: specifies minimum number of virtual cores allocated for the applications
• Format: integer
• Used by: NM
• Example:

<property>
    <name>yarn.scheduler.minimum-allocation-vcores</name>
    <value>2</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.scheduler.increment-allocation-mb
• Configuration file: yarn-site.xml
• Purpose: specifies increment amount of memory in megabytes for allocation for the applications
• Format: integer
• Used by: NM
• Example:

<property>
    <name>yarn.scheduler.increment-allocation-mb</name>
    <value>512</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.scheduler.increment-allocation-vcores
• Configuration file: yarn-site.xml
• Purpose: specifies incremental number of virtual cores for allocation for the applications
• Format: integer
• Used by: NM
• Example:

<property>
    <name>yarn.scheduler.increment-allocation-vcores</name>
    <value>1</value>
</property>

Hadoop configuration⌘

• Parameter: mapreduce.task.io.sort.mb
• Configuration file: mapred-site.xml
• Purpose: specifies the size of the circular in-memory buffer used to store MapReduce temporary data
• Guideline: ~10% of the JVM heap size
• Format: integer (MB)
• Used by: NM
• Example:

<property>
    <name>mapreduce.task.io.sort.mb</name>
    <value>128</value>
</property>

Hadoop configuration⌘

• Parameter: mapreduce.task.io.sort.factor
• Configuration file: mapred-site.xml
• Purpose: specifies the number of files to merge at once
• Guideline: 64 for 1 GB JVM heap size
• Format: integer
• Used by: NM
• Example:

<property>
    <name>mapreduce.task.io.sort.factor</name>
    <value>64</value>
</property>

Hadoop configuration⌘

• Parameter: mapreduce.map.output.compress
• Configuration file: mapred-site.xml
• Purpose: specifies whether the output of the map tasks should be compressed or not
• Format: 'true' / 'false'
• Used by: NM
• Example:

<property>
    <name>mapreduce.map.output.compress</name>
    <value>true</value>
</property>

Hadoop configuration⌘

• Parameter: mapreduce.map.output.compress.codec
• Configuration file: mapred-site.xml
• Purpose: specifies the codec used for map tasks output compression
• Format: Java class
• Used by: NM
• Example:

<property>
    <name>mapreduce.map.output.compress.codec</name>
    <value>org.apache.io.compress.SnappyCodec</value>
</property>

Hadoop configuration⌘

• Parameter: mapreduce.output.fileoutputformat.compress.type
• Configuration file: mapred-site.xml
• Purpose: specifies whether the compression should be applied to the values only, key-value pairs or not at all
• Format: 'RECORD' / 'BLOCK' / 'NONE'
• Used by: NM
• Example:

<property>
    <name>mapreduce.output.fileoutputformat.compress.type</name>
    <value>BLOCK</value>
</property>

Hadoop configuration⌘

• Parameter: mapreduce.reduce.shuffle.parallelcopies
• Configuration file: mapred-site.xml
• Purpose: specifies the number of threads started in parallel to fetch the output from map tasks
• Guideline: natural logarithm of the size of the cluster, times four, as a whole number
• Format: integer
• Used by: NM
• Example:

<property>
    <name>mapreduce.reduce.shuffle.parallelcopies</name>
    <value>5</value>
</property>

Hadoop configuration⌘

• Parameter: mapreduce.job.reduces
• Configuration file: mapred-site.xml
• Purpose: specifies the number of reduce tasks to use for the MapReduce jobs
• Format: integer
• Used by: RM
• Example:

<property>
    <name>mapreduce.job.reduces</name>
    <value>1</value>
</property>

Hadoop configuration⌘

• Parameter: mapreduce.shuffle.max.threads
• Configuration file: mapred-site.xml
• Purpose: specifies the number of threads started in parallel to serve the output of map tasks
• Format: integer
• Used by: RM
• Example:

<property>
    <name>mapreduce.shuffle.max.threads</name>
    <value>1</value>
</property>

Hadoop configuration⌘

• Parameter: mapreduce.job.reduce.slowstart.completedmaps
• Configuration file: mapred-site.xml
• Purpose: specifies when to start allocating reducers as the number of complete map tasks grows
• Format: float
• Used by: RM
• Example:

<property>
    <name>mapreduce.job.reduce.slowstart.completedmaps</name>
    <value>0.5</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.ha.rm-ids
• Configuration file: yarn-site.xml
• Purpose: specifies logical resource manager names used for resource manager HA purpose
• Format: comma separated strings
• Used by: RM, NM, clients
• Example:

<property>
    <name>yarn.resourcemanager.ha.rm-ids</name>
    <value>resourcemanager1,resourcemanager2</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.ha.id
• Configuration file: yarn-site.xml
• Purpose: specifies preferred resource manager for an active unit
• Format: string
• Used by: RM
• Example:

<property>
    <name>yarn.resourcemanager.ha.id</name>
    <value>resourcemanager1</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.address.[resourcemanager]
• Configuration file: yarn-site.xml
• Purpose: specifies resource manager RPC address
• Format: Hadoop URL
• Used by: RM, clients
• Example:

<property>
    <name>yarn.resourcemanager.address.resourcemanager1</name>
    <value>http://resourcemanager1.hadooplab:8032</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.scheduler.address.[resourcemanager]
• Configuration file: yarn-site.xml
• Purpose: specifies resource manager RPC address for Scheduler service
• Format: Hadoop URL
• Used by: RM, clients
• Example:

<property>
    <name>yarn.resourcemanager.scheduler.address.resourcemanager1</name>
    <value>http://resourcemanager1.hadooplab:8030</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.admin.address.[resourcemanager]
• Configuration file: yarn-site.xml
• Purpose: specifies resource manager RPC address used for the resource manager HA purpose
• Format: Hadoop URL
• Used by: RM, clients
• Example:

<property>
    <name>yarn.resourcemanager.admin.address.resourcemanager1</name>
    <value>http://resourcemanager1.hadooplab:8033</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.resource-tracker.address.[resourcemanager]
• Configuration file: yarn-site.xml
• Purpose: specifies resource manager RPC address for Resource Tracker service
• Format: Hadoop URL
• Used by: RM, NM
• Example:

<property>
    <name>yarn.resourcemanager.resource-tracker.address.resourcemanager1</name>
    <value>http://resourcemanager1.hadooplab:8031</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.webapp.address.[resourcemanager]
• Configuration file: yarn-site.xml
• Purpose: specifies resource manager address for web UI and REST API services
• Format: Hadoop URL
• Used by: RM, clients
• Example:

<property>
    <name>yarn.resourcemanager.webapp.address.resourcemanager1</name>
    <value>http://resourcemanager1.hadooplab:8088</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.ha.fencer
• Configuration file: yarn-site.xml
• Purpose: specifies the fencing methods for jobtracker HA purpose
• Format: new-line-separated list of Linux paths
• Used by: RM
• Example:

<property>
    <name>yarn.resourcemanager.ha.fencer</name>
    <value>/usr/local/bin/STONITH.sh</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.ha.auto-failover.enabled
• Configuration file: yarn-site.xml
• Purpose: enables automatic failover in resource manager HA pair
• Format: boolean
• Used by: RM
• Example:

<property>
    <name>yarn.resourcemanager.ha.auto-failover.enabled</name>
    <value>true</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.recovery.enabled
• Configuration file: yarn-site.xml
• Purpose: enables job recovery on resource manager restart or during the failover
• Format: boolean
• Used by: RM
• Example:

<property>
    <name>yarn.resourcemanager.ha.recovery.enabled</name>
    <value>true</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.ha.auto-failover.port
• Configuration file: yarn-site.xml
• Purpose: specifies ZKFC port
• Format: integer
• Used by: RM
• Example:

<property>
    <name>yarn.resourcemanager.ha.auto-failover.port</name>
    <value>8018</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.ha.enabled
• Configuration file: yarn-site.xml
• Purpose: enables resource manager HA feature
• Format: boolean value
• Used by: RM
• Example:

<property>
    <name>yarn.resourcemanager.ha.enabled</name>
    <value>true</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.store.class
• Configuration file: yarn-site.xml
• Purpose: specifies storage for resource manager internal state
• Format: string
• Used by: RM
• Example:

<property>
    <name>yarn.resourcemanager.store.class</name>
    <value>org.apache.hadoop.yarn.server.resourcemanager.recovery.ZKRMStateStore</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.cluster-id
• Configuration file: yarn-site.xml
• Purpose: specifies the logical name of YARN cluster
• Format: string
• Used by: RM, NM, clients
• Example:

<property>
    <name>yarn.resourcemanager.cluster-id</name>
    <value>HAcluster</value>
</property>

Configuration changes⌘

MRv1	MRv2
fs.default.name	fs.defaultFS
ha.zookeeper.quorum	---
mapred.job.tracker	yarn.resourcemanager.hostname
mapred.local.dir	yarn.nodemanager.local-dirs
mapred.java.child.opts	---
mapred.child.ulimit	---
mapred.tasktracker.map.tasks.maximum	---
mapred.tasktracker.reduce.tasks.maximum	---

Configuration changes⌘

MRv1	MRv2
---	yarn.nodemanager.resource.memory-mb
---	yarn.nodemanager.resource.cpu-vcores
---	yarn.scheduler.minimum-allocation-mb
---	yarn.scheduler.minimum-allocation-vcores
---	yarn.scheduler.increment-allocation-mb
---	yarn.scheduler.increment-allocation-vcores
io.sort.mb	mapreduce.task.io.sort.mb
io.sort.factor	mapreduce.task.io.sort.factor

Configuration changes⌘

MRv1	MRv2
mapred.compress.map.output	mapreduce.map.output.compress
mapred.map.output.compression.codec	mapreduce.map.output.compress.codec
mapred.output.compression.type	mapreduce.output.fileoutputformat.compress.type
mapred.reduce.parallel.copies	mapreduce.reduce.shuffle.parallelcopies
mapred.reduce.tasks	mapreduce.job.reduces
tasktracker.http.threads	mapreduce.shuffle.max.threads
mapred.reduce.slowstart.completed.maps	mapreduce.job.reduce.slowstart.completedmaps
mapred.jobtrackers.[nameservice]	yarn.resourcemanager.ha.rm-ids
mapred.ha.jobtracker.id	yarn.resourcemanager.ha.id

Configuration changes⌘

MRv1	MRv2
mapred.jobtracker*address / mapred.ha.jobtracker*address	yarn.resourcemanager*address
mapred.client.failover.*	---
mapred.ha.fencing.methods	yarn.resourcemanager.ha.fencer
mapred.ha.automatic-failover.enabled	yarn.resourcemanager.ha.auto-failover.enabled
mapred.ha.zkfc.port	yarn.resourcemanager.ha.auto-failover.port
---	yarn.resourcemanager.ha.enabled
yarn.resourcemanager.store.class
mapred.jobtracker.restart.recover	yarn.resourcemanager.recovery.enabled
---	yarn.resourcemanager.cluster-id

Hadoop configuration⌘

• Parameter: hadoop.security.authentication
• Configuration file: core-site.xml
• Purpose: defines authentication mechanism to use within the Hadoop cluster
• Format: string
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>hadoop.security.authentication</name>
    <value>kerberos</value>
</property>

Hadoop configuration⌘

• Parameter: hadoop.security.authorization
• Configuration file: core-site.xml
• Purpose: enables / disables client authorization within the Hadoop cluster
• Format: boolean
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>hadoop.security.authorization</name>
    <value>true</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.block.access.token.enable
• Configuration file: hdfs-site.xml
• Purpose: enables / disables access to HDFS blocks for authenticated users only
• Format: boolean
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>dfs.block.access.token.enable</name>
    <value>true</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.namenode.keytab.file
• Configuration file: hdfs-site.xml
• Purpose: specifies a path to namenode keytab file
• Format: Linux path
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>dfs.namenode.keytab.file</name>
    <value>/etc/hadoop/conf/hdfs.keytab</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.namenode.kerberos.principal
• Configuration file: hdfs-site.xml
• Purpose: specifies a principle that namenode should use for the authentication purpose
• Format: Kerberos principal
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>dfs.namenode.kerberos.principal</name>
    <value>hdfs/namenode@HADOOPLAB.COM</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.namenode.kerberos.internal.spnego.principal
• Configuration file: hdfs-site.xml
• Purpose: specifies an internal spnego principle that namenode should use
• Format: Kerberos principal
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>dfs.namenode.kerberos.internal.spnego.principal</name>
    <value>HTTP/namenode@HADOOPLAB.COM</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.secondary.namenode.keytab.file
• Configuration file: hdfs-site.xml
• Purpose: specifies a path to secondary namenode keytab file
• Format: Linux path
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>dfs.secondary.namenode.keytab.file</name>
    <value>/etc/hadoop/conf/hdfs.keytab</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.secondary.namenode.kerberos.principal
• Configuration file: hdfs-site.xml
• Purpose: specifies a principle that secondary namenode should use for the authentication purpose
• Format: Kerberos principal
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>dfs.secondary.namenode.kerberos.principal</name>
    <value>hdfs/secondarynamenode@HADOOPLAB.COM</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.secondary.namenode.kerberos.internal.spnego.principal
• Configuration file: hdfs-site.xml
• Purpose: specifies an internal spnego principle that secondary namenode should use
• Format: Kerberos principal
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>dfs.secondary.namenode.kerberos.internal.spnego.principal</name>
    <value>HTTP/namenode@HADOOPLAB.COM</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.datanode.keytab.file
• Configuration file: hdfs-site.xml
• Purpose: specifies a path to datanode keytab file
• Format: Linux path
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>dfs.datanode.keytab.file</name>
    <value>/etc/hadoop/conf/hdfs.keytab</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.datanode.kerberos.principal
• Configuration file: hdfs-site.xml
• Purpose: specifies a principle that datanode should use for the authentication purpose
• Format: Kerberos principal
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>dfs.datanode.kerberos.principal</name>
    <value>hdfs/datanode@HADOOPLAB.COM</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.datanode.data.dir.perm
• Configuration file: hdfs-site.xml
• Purpose: overwrites permissions assigned to the directories specified by the dfs.data.dir parameter
• Format: Linux permissions
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>dfs.datanode.data.dir.perm</name>
    <value>700</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.datanode.address
• Configuration file: hdfs-site.xml
• Purpose: specifies IP address and port on which the data transceiver RPC server should be bound
• Guideline: port mus be below 1024 in secure mode
• Format: IP:port
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>dfs.datanode.address</name>
    <value>0.0.0.0:1004</value>
</property>

Hadoop configuration⌘

• Parameter: dfs.datanode.http.address
• Configuration file: hdfs-site.xml
• Purpose: specifies IP address and port on which the embedded HTTP server should be bound
• Format: IP:port
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>dfs.datanode.http.address</name>
    <value>0.0.0.0:1006</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.keytab
• Configuration file: yarn-site.xml
• Purpose: specifies a path to resourcemanager keytab file
• Format: Linux path
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>yarn.resourcemanager.keytab</name>
    <value>/etc/hadoop/conf/yarn.keytab</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.resourcemanager.principal
• Configuration file: yarn-site.xml
• Purpose: specifies a principle that resourcemanager should use for the authentication purpose
• Format: Kerberos principal
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>yarn.resourcemanager.principal</name>
    <value>yarn/resourcemanager@HADOOPLAB.COM</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.nodemanager.keytab
• Configuration file: yarn-site.xml
• Purpose: specifies a path to nodemanager keytab file
• Format: Linux path
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>yarn.nodemanager.keytab</name>
    <value>/etc/hadoop/conf/yarn.keytab</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.nodemanager.principal
• Configuration file: yarn-site.xml
• Purpose: specifies a principle that nodemanager should use for the authentication purpose
• Format: Kerberos principal
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>yarn.nodemanager.principal</name>
    <value>yarn/nodemanager@HADOOPLAB.COM</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.nodemanager.container-executor.class
• Configuration file: yarn-site.xml
• Purpose: specifies what engine in a cluster is responsible for containers execution
• Format: Java class
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>yarn.nodemanager.container-executor.class</name>
    <value>org.apache.hadoop.yarn.server.nodemanager.LinuxContainerExecutor</value>
</property>

Hadoop configuration⌘

• Parameter: yarn.nodemanager.linux-container-executor.group
• Configuration file: yarn-site.xml
• Purpose: specifies a user or group for containers execution purpose
• Format: Java class
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>yarn.nodemanager.linux-container-executor.group</name>
    <value>yarn</value>
</property>

Hadoop configuration⌘

• Parameter: mapreduce.jobhistory.address
• Configuration file: mapred-site.xml
• Purpose: specifies IP address and port on which the MapReduce Job History server should be bound
• Format: IP:port
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>mapreduce.jobhistory.address</name>
    <value>0.0.0.0:10020</value>
</property>

Hadoop configuration⌘

• Parameter: mapreduce.jobhistory.keytab
• Configuration file: mapred-site.xml
• Purpose: specifies a path to jobhistoryserver keytab file
• Format: Linux path
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>mapreduce.jobhistory.keytab</name>
    <value>/etc/hadoop/conf/mapred.keytab</value>
</property>

Hadoop configuration⌘

• Parameter: mapreduce.jobhistory.principal
• Configuration file: mapred-site.xml
• Purpose: specifies a principle that jobhistoryserver should use for the authentication purpose
• Format: Kerberos principal
• Used by: NN, SNN, DN, RM, NM
• Example:

<property>
    <name>mapreduce.jobhistory.principal</name>
    <value>mapred/jobhistoryserver@HADOOPLAB.COM</value>
</property>

Hadoop configuration⌘

• /etc/hadoop/conf/container-executor.cfg:

yarn.nodemanager.local-dirs=[comma-separated list of paths to local nodemanager directories]
yarn.nodemanager.linux-container-executor.group=[user or group for containers execution purpose]
yarn.nodemanager.log-dirs=[comma-separated list of paths to local nodemanager directories]
banned.users=[comma-separated list of users disallowed to execute jobs]
min.user.id=[minimal UID of users allowed to execute jobs]

Security - YARN⌘

• Principles:
  • JobHistoryServer: mapred@[HOST]
  • ResourceManager, NodeManager: yarn@[HOST]
• Kerberos properties:
  • MRv1: taskcontroller.cfg
  • MRv2: container-executor.cfg

YARN cluster installation and configuration⌘

• Lab Exercise 5.2.1
• Lab Exercise 5.2.2
• Lab Exercise 5.2.3

Running MapReduce jobs on YARN cluster⌘

• Lab Exercise 5.3.1

Fifth Day - Session IV⌘

Case Studies, Certification and Surveys

http://zone16.pcansw.org.au/site/ponyclub/image/fullsize/60786.jpg

Certification and Surveys⌘

• Congratulations on completing the course!
• Official Cloudera certification authority:
  • http://www.cloudera.com/content/cloudera/en/training/certification/ccah.html
• Visit http://www.nobleprog.com for other courses
• Surveys: http://www.nobleprog.pl/te
