BPMN 2.0 Questions 1

1

In this subprocess, when will the process be complete?

	When the corporate executives are interviewed
	When all activities are completed.
	When all activities are started

Answer >>

When all activities are completed.

2

Which of these order flow elements in a BPMN process?

	Lane
	Event
	Sequence Flow
	Gateway

Answer >>

Sequence flow determines the order of the flow elements

3

Which is true about a process with a start event?

	All paths in the process must end with an end event
	Chosen paths in the process may end with an end event and the end events with incoming messages are shown as message events
	Paths in the process reveal an end event and the end events optionally accept an incoming message
	Paths with a start in the process must end with an end event
	The end events must not accept an incoming messages

Answer >>

All paths in the process must end with an end event and the end events must not accept an incoming message

4

Which is an objective of WSBPEL?

	To provide common representation of data process models.
	To provide a mapping from legacy methodologies to business process modeling
	To provide a tool for capturing process models
	To provide an XML language designed for process execution

Answer >>

To provide an XML language designed for process execution

5

What connects a BPMN shape to a BPMN shape and a BPMN pool to a BPMN pool?

	An event and a message flow
	A data object and a message flow
	Message flow and a sequence flow
	Sequence flow and a message flow

Answer >>

Sequence flow and a message flow

6

What do you never use to connect objects in a process pool?

	A sequence flow connector.
	A message flow connector
	A pool
	An activity

Answer >>

A message flow connector

7

Which is a list of gateway types in the context of BPMN and what do these types do?

	Exclusive, inclusive, complex, and parallel determine the type of behavior for the diverging and converging Sequence Flow.
	Exclusive, inclusive and simple determine the type of behavior for the diverging message flow.
	Decision, merge, fork and join determine the type of behavior for the converging Sequence Flow.
	AND, OR and XOR determine the type of logic and settle the Sequence Flow. Sequence flow, data-based and event-based.

Answer >>

Exclusive, inclusive, complex, and parallel determine the type of behavior for the diverging and converging Sequence Flow.

8

What is the role of BPMN on Business Process Diagram (BPD)?

	To program the logical actions of data
	To document activities of people within processes
	To define the route a user’s senarios take
	To graphically depict business processes.

Answer >>

To graphically depict business processes.

9

There are many flow elements in BPMN. What are three types of BPMN flow elements?

	Private lanes, Abstract events and Collaboration messages
	Events, Activities and Gateways
	Process, Collaboration message, and Data Models

Answer >>

Events, Activities and Gateways

10

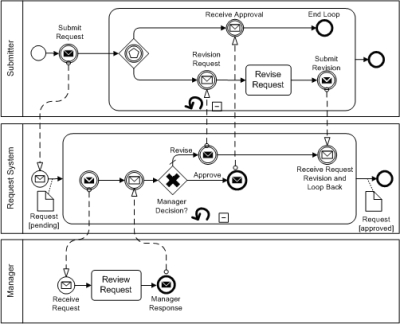

Which connection in this figure is an association in BPMN?

	There are no connections
	The connection from The Pending Request and the Approved Request
	The receiving signal
	There are no associations

Answer >>

The connection from The Pending Request and the Approved Request

11

A data object is most frequently used for which of the following?

	Data objects can be associated with activities, sequence flow and message flow.
	The input and output of a process
	A data object is regarded as a flow object and connects data elements among activities

Answer >>

Data objects can be associated with activities, sequence flow and message flow.

12

What are two characteristics of a BPMN group?

	A group may control the flow of a process and describe shared goals.
	A group is constrained by restriction of lanes and shows the relationship among subprocesses
	A group is denoted by dashes and dots and may include activities in two or more pools.
	A group is constrained by restrictions of pools and short circuits roles

Answer >>

A group is denoted by dashes and dots and may include activities in two or more pools.

13

What do the four markers of a subprocess denote?

	Error, timer, compensation and event
	Ad hoc, error, compensation, Loop, and Multiple instance
	Compensation, Timer, Message and Error
	Loop, Multiple instance, ad hoc and compensation

Answer >>

Loop, Multiple instance, ad hoc and compensation

14

In BPMN, what is a compound activity included within a process and a flow of other activities?

	It is a sub-partition within a pool
	A Process
	It is ad hoc and compensation activity
	A Sub-Proces

Answer >>

A Sub-Proces

15

In the process shown, which statement describes the behavior of the activities?

	C awaits A and B to complete
	Activity A starts
	Activities A,B,and C are started in parallel
	The process diagram is ambiguous. There should be a message or a start

Answer >>

Activities A,B,and C are started in parallel

16

What can never connect between two different pools in a diagram?

	A message flow
	A swim lane
	An event
	A sequence flow

Answer >>

A sequence flow

17

What is a BPMN event and what are the three types?

	An event is an object in time. The types are: Start, Duration and Intermediate
	An event is an appointment for a meeting, presentation, or training for an employee of a company. The types are: Message, Timer and Error Handling
	An event is something that happens during a business process. The types are Start, End and Intermediate.
	An event is a piece of work performed within a business process

Answer >>

An event is something that happens during a business process. The types are Start, End and Intermediate.

18

Which statement about Sequence Flow in BPMN is true?

	The sequence flow defines the transition between the logical steps performed by a single participant
	Sequence Flow must be illustrated within a progression diagram.
	Only events can be both source and target in Sequence Flow
	Sequence Flow may have a Boolean expression attribute

Answer >>

The sequence flow defines the transition between the logical steps performed by a single participant

19

How does the BPMN Spec define the activity?

	It defines where a logic step occurs in the process and It denotes work performed within a business process.
	It is an element of the process flow affecting the sequence and timing of other elements. It is passed where work is combined into a business process.
	It is a workflow task where an actor performer performs the task with the assistance of others
	It is a logic element passed during the course of a business process. It defines where work merged into a business process

Answer >>

It defines where a logic step occurs in the process and It denotes work performed within a business process.

20

Which statement about parallel gateways is true?

	After the gateways, a condition defines the activities that may be performed at one time
	After the gateways each branch is determined by the downstream condition
	The sequence flow defines what is parallel
	In the parallel gateway, all paths leaving the gateway are executed

Answer >>

In the parallel gateway, all paths leaving the gateway are executed

21

In the proper order, what are the top-level shapes for the Event, Activity and Gateway?

	Triangle, Circle and Rounded Rectangle
	Circle, Rounded Rectangle and Diamond
	A box and an internal cross at the base
	Diamond, Circle and Rounded Rectangle

Answer >>

Circle, Rounded Rectangle and Diamond

22

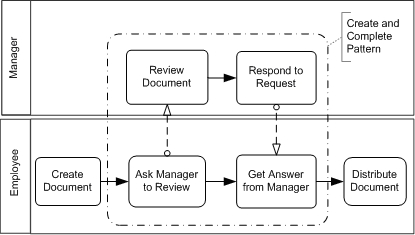

Which statement describes the characteristics of the process activities enclosed within group notation?

	They are related to each other for clarification or documentary purposes
	They are to be performed as a Sub-Process to review the request
	They are to be performed by the same participant (the manager)
	They are performed as part of the same review and connect a single data type

Answer >>

They are related to each other for clarification or documentary purposes

23

What are the three types of activities within a process?

	Activity, subevent, and gateway
	Process, subprocess, and task
	Process, subprocess, and message
	Lane, event, and subprocess

Answer >>

Process, subprocess, and task
